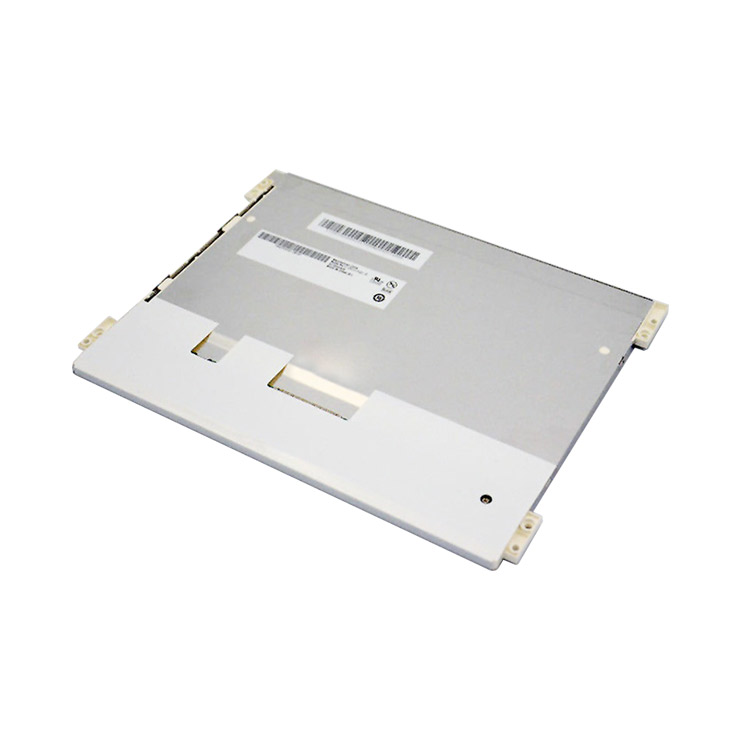

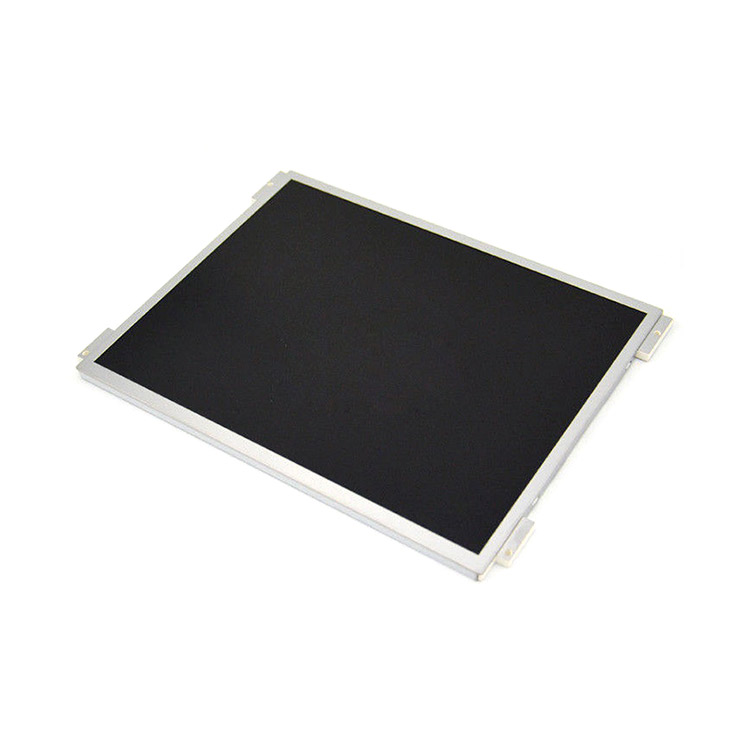

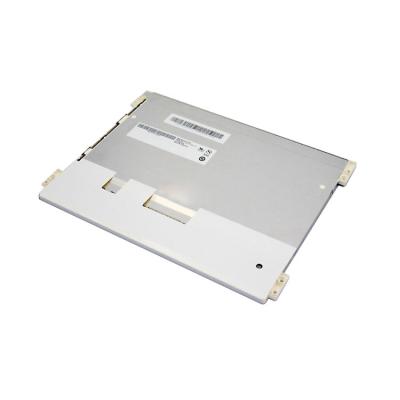

AUO G104XVN01.0 10Application Details
Basic Detail : |
Manufacturer |
AUO |
Model Name |
G104XVN01.010 |
Panel Type |
a-Si TFT-LCD , LCM |
|
|
Panel Size |
10.4inch |
Designed For |
Idustrial |
Maximum Ratings : |
OP Temperature |
-30 ~ 80°C |
ST Temperature |
-30 ~ 80 °C |
RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
Features : |
Wide Temperature,WLED Backlight,Life>=70K hours,With LED Driver,180°Reverse,Matte,6/8 bit |
AUO G104XVN01.0 10 Optical Details
Basic Information : |
Luminance |
470cd/m² (Typ.) |
Contrast Ratio |
3000:1 (Typ.) (Transmissive) |
Good View at |
Symmetry |
Response Speed |
20/10 (Typ.)(Tr/Td) ms |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Operating Mode |
AMVA3, Normally Black, Transmissive |
Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Support Color |
262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature |
6485K |
White Variation |
1.25/1.33 (Typ./Max.)(5 points) |
1931 Color Gamlt : |
NTSC Ratio |
60% |
sRGB |
84% coverage |
Adobe RGB |
63% coverage |
DCI-P3 |
63% coverage |
Rec.2020 |
45% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G104XVN01.010 Mechanical Details
Pixel Features : |
Number of Pixel |
1024(RGB)×768, XGA |
Arrangement |
RGB Vertical Stripe |
Dot Pitch(W×H) |
0.0685×0.2055 mm |
Pixel Pitch(W×H) |
0.2055×0.2055 mm [123PPI] |
Physical Size : |
Active Viewing(mm) |
210.4(W)×157.8(H) mm |
Outline Dim.(mm) |
238.6(W)×175.8(H) mm |
Bezel Area(mm) |
215.4(W)×161.8(H) mm |
Depth(mm) |
6.5±0.5 mm |
Mounting : |
Face mounting holes (4-Φ2.8) on left, right bezel |
Other Spec : |
Weight |
295g (Typ.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G104XVN01.010 Electronics Details
Refresh Rate : |
60Hz |
Reverse Scan : |
Yes (180°) |
Total Consumption : |
6.0W (Typ.) |
AUO G104XVN01.0 10Interface Detail
Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
300mA (Typ.) |
Consumption |
0.99W (Typ.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) |
Interface Features : |
Position |
- |
Type |
Connector |
Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
JAE |
FI-XPB30SRLA-HF11 |
1.0 mm |
30 pins |
1 pcs |
|
AUO G104XVN01.010 Backlight Details
Lamp Features : |
Lamp Type |
WLED |
Quantity |
8S2P |
Position |
Edge light type |
Exchange |
No |
Lamp Shape |
2 strings |
Lamp Life |
70(Min.) (Hours) |
Lamp Electrical : |
Input Voltage |
29.7/32.4V (Typ./Max.) |
Input Current |
80mA (Typ.) |
Consumption |
4.75W (Typ.) |
Interface Features : |
Position |
- |
Physical Type |
Connector |
Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
E&T |
3808K-F05N-02R |
1.25 mm |
5 pins |
1 pcs |
|
Backlight Driver : |
With LED Driver |
Driver Electrical : |
Voltage Supply |
12.0V (Typ.) |
Current Supply |
0.5A (Typ.) |
Consumption |
6.0W (Typ.) |
AUO G104XVN01.010 Packing Details
Package Box : |
Quantity |
Weight |
Box Size |
40 pcs / box |
15.5Kgs |
458×412×368 mm (L×W×H) |
