Application: Medical Imaging Equipment
Industry: Medical Industry

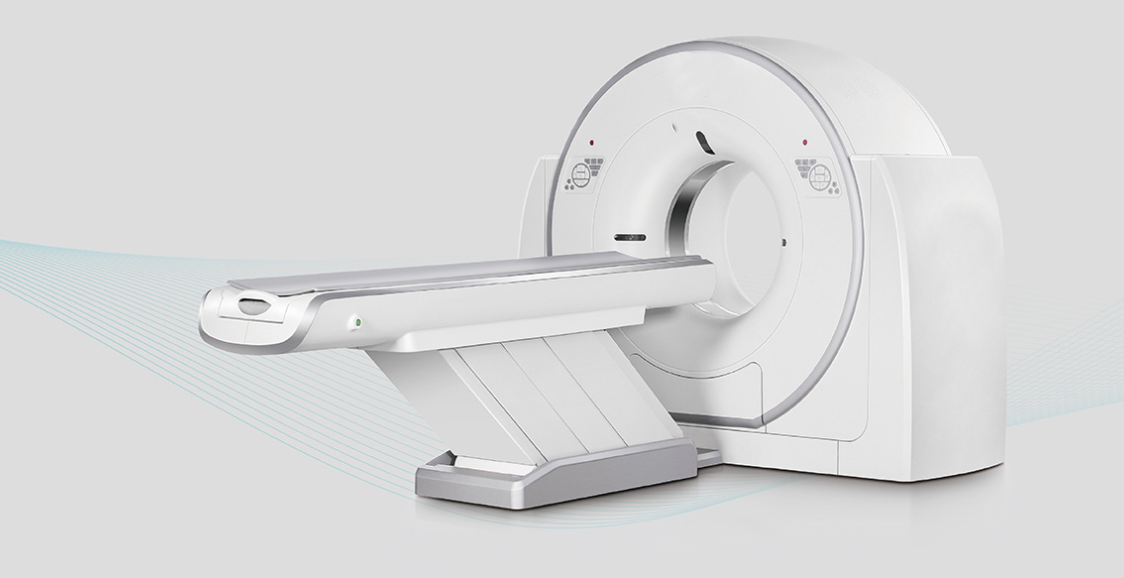

Precision tomography spectral CT of medical imaging processing system has advanced processing functions such as three-dimensional processing, energy spectrum analysis, and AI intelligent analysis. The ultrathin 0.275mm scanning, precision CT images can clearly show the fine structure of the human body such as the inner ear, pulmonary nodules and so on. The comprehensive 32-slice energy spectrum platform enables hospitals at all levels to enjoy the advanced functions of ultra-high-end CT. Energy spectrum has rich clinical value in stone composition analysis, gout examination and tumor examination. Precision low dose care, ultra-low 60Kv scanning in the industry; Megapixel high clearing method; P-IR advanced two-domain iterative reconstruction.
Customer requirements on LCD screen selection: The customer was looking for a 15.6inch industrial LCD screen, with LVDS interface, 1920*1080 resolution, wide temperature, with narrow frame capacitive touch screen, and better cost performance.
Our recommended solution: Innolux TFT LCD G156HCE-L01+Touch screen XH156135A
G156HCE-L01 main technical parameters:
Resolution: 1920 (RGB) *1080(FHD) 141PPI
Brightness: 450cd/m² (Typ.)
Contrast Ratio: 800:1
Viewing Angle: 85/85/85/85 (Typ.)
Operating Temperature -30~85C°
Signal System: LVDS (2ch, 8-bit) terminal, 40pins
Backlight System: WLED, 50k hours, including LED driver
Response Speed: 13/12 (Typ.) (Tr/Td) ms

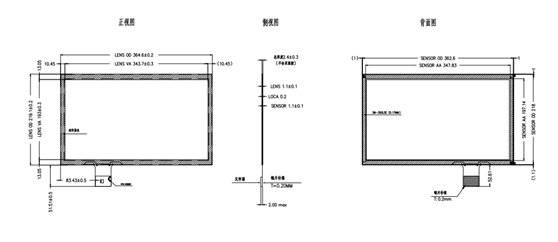

15.6" capacitive touch screen(XH156135A)main technical parameters:
1, COVER LENS is chemically reinforced glass
2, FPC interface is USB, 4pin seat
3, PCB board IC(ILI2511), touch channel RX38*TX22
4, surface hardness is 6H
5, light transmittance ≥87%
6, non-indicated tolerance is ±0.2mm
7, the product complies with RoHS standards
8, operating temperature -40~85 °c
9, storage temperature -40~85 °c
10, Display area: 343.7mm (horizontal) *193mm (vertical)
11, Appearance size: 364.6mm (horizontal) x219.1mm (vertical) *2.4 mm(thickness)
Advantages and disadvantages:
This Innolux Chimei original 15.6inch TFT LCD screen (G156HCE-L01) has excellent display performance because of wide operating temperature, high contrast ratio and high saturation, more than 50k hours life, 450nits brightness, full viewing angle, and 1.5G vibration resistance. G156HCE-L01 is an industrial LCD screen, so it has long production cycle. Innolux Chimei original factories will always keep stable delivery. Our customers feedback that it is easy to operate with using our driver board, which can display immediately after the signal and power supplied. This display solution is fully in line with the medical equipment LCD screen selection requirements.
