Application : portable data collection instrument
Industry: Smart test measurement solutions composed of sensors, cables, data collection equipment, multiple vibration equipment and professional data analysis software.

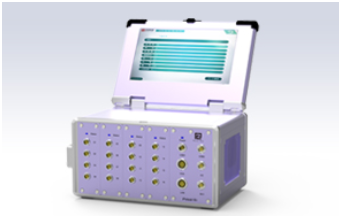

The portable data collection instrument consists of a controller, chassis, and collection module. Wide temperature devices, industrialized design, working temperature can reach -40 ~+80 ° C. The built -in system bus of the chassis uses the Ethernet bus, and the bus bandwidth is 1Gbit/s. The collection module can be configured: various conditioning collection modules such as vibration, voltage, and strain. It can be used as a real -time signal collecting analyzer, or it can also be used for data collection recorders. It can be connected to an external VGA display, and it can also be equipped with a touch display to form an integrated instrument for collection, analysis, and display.
Customer’s requirements; 13.3 inch, wide temperature industrial LCD screen, long -term stable supply
Our solutions: G133HAN01.1 AUO 13.3 -inch LCD screen
The resolution of G133HAN01.1 is 1920 (RGB) × 1080 FHD 166PPI, the brightness is 400 cd/m² (TYP.), The contrast is 800: 1, the visual angle 89/89/89 /89(TYP.) (CR ≥ 10) , Work temperature: -20 ~ 70 °C, signal system LVDS (2 CH, 8 -BIT), terminal, 30pins, backlight type Wled, 50k hours, including LED drive, response speed 25 (TYP.) (TR+TD) ms, G133HAN01.1 is suitable for industry.
Advantages and disadvantages: G133HAN01.1, resolution 1920*1080, 13.3 inches of LVDS interface, wide temperature, and working for 50k hours normally.
For more the LCD screen solutions for sensors, cables, data collection equipment, and multi -exciting equipment products, consult Hangzhou Xuhong and we will recommend you the most suitable LCD screen solution.
