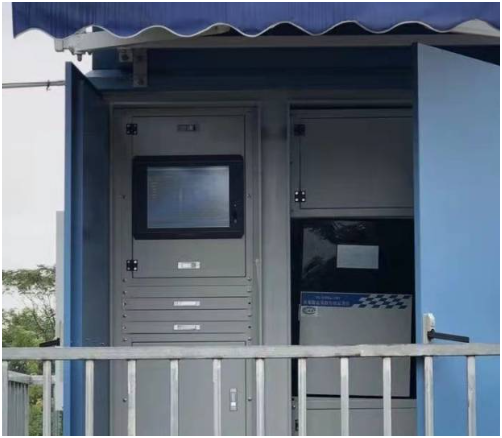

Communication equipment outdoor monitoring chassis
------18.5inch high brightness TFT LCD screen application case
Industry: Outdoor communication equipment
Application Product: Communication monitoring
There are many kinds of natural disasters in many countries, and occur frequently. At the same time, large-scale industrial production may cause sudden safety accidents. When major natural disasters and emergencies occur, timely and reliable emergency communication is an important guarantee for smoothly carrying out relief efforts. The satellite communication equipment arrives at the disaster site with rescue workers at the first time, even if all ground communication means fail at the disaster site, smooth communication between the disaster site and the rear command center is ensured through satellite links, so as to ensure that the rear command center can grasp the scene situation in real time and conduct effective command.
Customer LCD screen selection requirements; LCD size is 18.5inch, chassis application environment is outdoor or half-outdoor, so high-brightness is necessary.
We recommend HY0185GL02-S100, 18.5inch 1000nits BOE assembled TFT LCD screen.
HY0185GL01-S100（18.5inch assembled TFT LCD with BOE liquid crystal glass）
>>HY0185GL01-S100:
Resolution 1920 (RGB) X1080(FHD)
Brightness 1000cd/m²(Typ.),
Contrast Ratio: 800:1
Viewing Angle 85/85/85/85 (Typ.) (CR≥10)
Operating Temperature: -20~70°C
Signal System: LVDS.
>>Advantages and disadvantages:
The product will be used outdoor with the high brightness requirement, 1000cd/m² is the best. The customer used to use AUO G185HAN01.1. Their first solution is to change the brightness of G185HAN01.1 into 1000cd.m², after checking and accounting the customer thought the cost rose too much. We recommend this 18.5inch assembled TFT LCD module with BOE glass, it is high brightness LCD module with favorable price, suitable operating temperature, good display effect, and high cost performance. At present, our company has a number of customers with stable usage for at least 3-5 years.
>>HY0185GL02-S100 actual measurement chart：
About HY0185GL01-S100, 18.5inch assembled TFT LCD module with BOE glass, high brightness TFT LCD screen datasheet, you can ask our customer service online for it. Welcome to consult more about the LCD screen selection on communication equipment.
