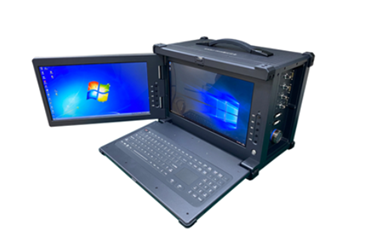

Application product: slot reinforced portable dual screen chassis
Industry: Portable Computers
Through reinforcement portable dual -screen independent display, 15.6 inches, 1920*1080, high performance 400W power supply, full reinforcement aluminum alloy material, high performance, high stability, high reliability.
Through -reinforcement portable dual -screen chassis meets the Compact PCI specification, supports 3U modules, holds 8 slots (including 1 system slot, 7 expansion slots), which supports custom interface panels. The case has a high -performance 400W power supply with generic AC input. It has excellent performance, low ripples, low noise, high efficiency, overvoltage protection, overcurrent protection, temperature protection, and under pressure protection. The electromagnetic compatibility, signal characteristics, cooling capacity, and power supply of this chassis are superior. Widely used in high-reliable automatic test system ATS and experimental simulation systems.
Customer’s requirements: 15.6 -inch industrial -grade LCD screen, wide temperature, 1920*1080 resolution
Our scheme: G156HCE-L01+Industrial Driven
The resolution of G156HCE-L01 is 1920 (RGB) × 1080 FHD 141PPI, and the brightness is 450 cd/m² (TYP.), the contrast ratio :800: 1, visual angle 85/85/85/85 (TYP.) (CR ≥ 10) , Work temperature: -30 ~ 85 °C, signal system LVDS (2 CH, 8 -Bit), terminal, 420 Pins, backlight type Wled, 50k hours, containing LED drive, response speed 13/12 (TYP.) ( TR +TD) MS, G150XNE-L01 is suitable for industry.
Advantages and disadvantages: G156HCE-L01 INNOLUX original 15-inch industrial LCD screen, working temperature -30-85 °C, storage temperature -40-90 °C, life span greater than 50,000 hours, full perspective, long life, wide temperature,Brightness is 450cd/m2, with excellent performance, long continuous production cycle, and continuously supplying for industry and military products. It is simple to use with host providing signal and power with driver board.
