Industry: Industrial Computer
Application product: Industrial tablet computer
The industrial tablet computer series products have the characteristics of sturdiness, shock resistance, moisture resistance, dust prevention, high temperature resistance, multiple slots, and easy expansion according to environmental characteristics. It is the best platform for various applications in industrial control, traffic control, environmental control, and automation fields.
The main features of industrial tablet computers are:
1. Industrial touch tablet computers have an all-in-one structure, combining the host, LCD display, and touch screen into one, with good stability.
2. Adopting popular touch functions can simplify work, make it more convenient and efficient, and be more user-friendly.
3. Industrial touch tablets have a small size and are very easy to install and maintain.
4. Most industrial touch tablets adopt a fanless design, utilizing large-area fin shaped aluminum blocks for heat dissipation, resulting in lower power consumption and noise.
5. Beautiful appearance and wide application.

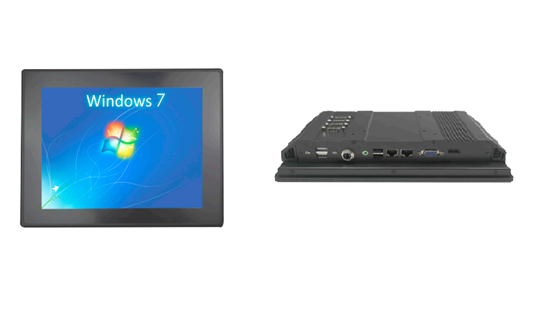

Industrial tablet computer
In fact, industrial computers and commercial computers have always been interdependent and inseparable. They each have their own application fields, but they influence and promote each other, reflecting the progress of technology. Main application areas: Industrial sites can be embedded into machines, cabinets, or placed on workstations for human-machine display and operation interfaces.
Customer LCD screen selection requirements: 10.4-inch LCD screen 1024 * 768, compatible with G104X1-L04 for replacement use.
Our recommended solution: G104XCE-L01 Mass Creation 10.4-inch original LCD screen.
The resolution of G104XCE-L01 is 1024 (RGB) × 768, XGA, 123PPI， The brightness is 500 cd/m ² (Typ.), the contrast ratio is 1000:1, the viewing angle is 88/88/88/88 (Typ.) (CR ≥ 10), and the operating temperature is:- 30 ~ 85 °C ; Signal system LVDS (1 ch, 6/8-bit), Terminal, 30 pins, backlight type WLED, 50K hours, including LED driver, response speed of 13/12 (Typ.) (Tr/Td) ms, G104XCE-L01 suitable for industrial use.
Advantages and disadvantages: The LCD screen previously selected by the customer was G104X1-L04, but the project was put on hold later and the Gunchuang G104X1-L04 was also discontinued. Now that the customer's project has restarted, if they buy the last stock of G104X1-L04 in the market, the price will be very high. Therefore, we recommend G104XCE-L01 as a replacement. G104XCE-L01 is a product launched by Gunchuang that can replace G104X1-L04. It has the same size positioning hole, the same brightness of 500 cd/m ² (Typ.), and the same temperature range of -30~80 ° C, so it meets the customer's replacement solution requirements.
