Simulation flight peripheral 5.6-inch AT056TN52 V3 compatible alternative solution
Industry: Computer, Communication, and Other Electronic Equipment Manufacturing
Application product: Simulated flight peripherals

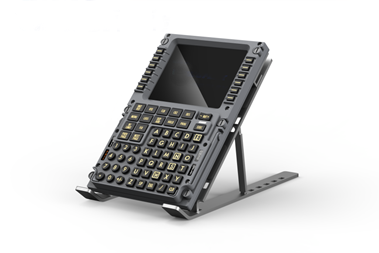

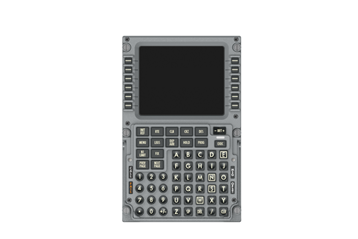

Simulated flight peripherals are an important component in enhancing the flight simulation experience, and their characteristics include: the flight joystick is one of the most basic peripherals in simulated flight, used to simulate the operation of the aircraft's control stick. The rudder pedal is used to simulate the foot rudder operation of an aircraft, enhancing the realism of flight.
Customer LCD screen selection requirements: Originally using the Mass Creation 5.6-inch AT056TN52 V3 (discontinued for many years), we are looking for a fully compatible replacement for the AT056TN52 V3 LCD screen
We recommend the following plan: DS-T0565BGEA-01， Our company is compatible with assembly screens that replace AT056TN52 V3
Advantages and disadvantages: DS-T0565BGEA-01 is a 5.6-inch LCD module product equipped with WLED backlight, no backlight driver, no touch, display resolution of 640 (RGB) × 480 (VGA), aspect ratio of 4:3 (width: height), brightness of 450, operating temperature of -20~70 ° C, storage temperature of -30~80 ° C, high contrast viewing angle of 80/80/80/01000:1, light source service life of 30K hours, pixels arranged in RGB vertical stripes, visible size of 115.20 × 86.4 (width: height) mm, appearance size of 126.5 × 100 (width: height) mm, surface treatment of matte, DS-T0565BGEA-01 EA-01 adopts Parallel RGB (1 ch, 8-bit) signal interface, with a total of 50 pins, connected by FPC, and a screen driving voltage of 3.3/5.0/15/-10V (Typ.) (VCC/AVDD/VGH/VGL). Its typical vertical refresh rate Fv is 60Hz. This model is recommended for industrial use.
