LCD driving board is the driving device of LCD. The main functions of LCD driving board are time, color, visual angle, contrast and other parameters. And can also achieve video, audio decoding, play pictures, and even radio functions.
Model of drive board |
Support maximum resolution |
Interface model |
Operating temperature / storage temperature |

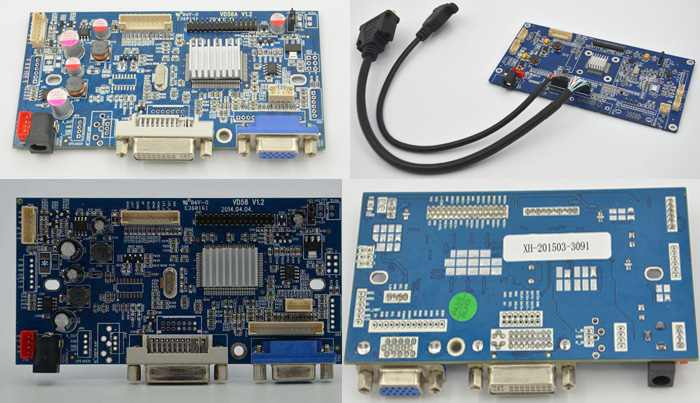

VD58 |
1920*1200 |
One VGA input, one DVI input, one audio input and one audio output |
-20°C ~ +70°C/-40°C ~ +80°C |
VDH58L |
1920*1200 |
1 VGA input, 1 DVI input, 1 HDMI input, 2 * 8W power amplifier |
-30°C ~ +70°C/-40°C ~ +80°C |
EDP520G |
1920*1200 |
1-way VGA input, 1-way HDMI input, 2 * 2W power amplifier |
-20°C ~ +70°C/-40°C ~ +80°C |
FPD-QHD |
2560*2048 |
One VGA input, one DVI input, one HDMI input and one DP input |
-20°C ~ +70°C/-40°C ~ +80°C |
JNT583GGD |
1920*1200 |
2-way VGA (ring out), 1-way DVI, 1-way audio input, 1-way audio output |
-40°C ~ +70°C/-40°C ~ +80°C |
TCON V1.2 |
1024*768 |
LVDS to TTL |
-20°C ~ +70°C/-40°C ~ +80°C |
EDP58G |
1920*1200 |
One VGA input, one DVI input, one audio input and one audio output |
-40°C ~ +70°C/-40°C ~ +80°C |
VD58DG |
1920*1200 |
One VGA input and one DVI input |
-40°C ~ +70°C/-40°C ~ +80°C |
RTD2662.C |
1920*1200 |
One VGA input, one AV input, one audio input and one audio output |
-40°C ~ +70°C/-40°C ~ +80°C |
PL1703-58G |
1920*1200 |
1-way VDA and 1-way DVI can ring out VGA (at VGA ring) |
-40°C ~ +70°C/-40°C ~ +80°C |
DM37F |
1920*1200 |
2-way CVBS signal input, 1 way VGA, 1 way hdmi/dvi, 1-way YPbPr, 2-way USB, 1-way CVBS output |
-25°C ~ +85°C/-40°C ~ +150°C |
FPD -AD3 |
1680*1050 |
One VGA input and one DVI input |
-20°C ~ +70°C/-40°C ~ +80°C |
VD57G |
1680*1050 |
One VGA input, one DVI input, one audio input and one audio output |
-40°C ~ +70°C/-40°C ~ +80°C |
V56 |
1920*1200 |
Two channels of CVBS signal input, one channel of VGA, one channel of HDMI / DVI, one channel of YPbPr, one channel of USB and one channel of CVBS output |
-25°C ~ +85°C/-40°C ~ +150°C |
