G101EVN01.5 AUO 10.1inch 1280*800 Mass production of industrial LCD
Date:2019-04-25

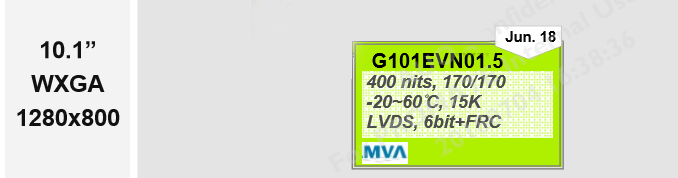

G101evn01.5 Youda 10.1-inch 1280 * 800 Industrial LCD screen. According to the above figure, g101evn01.5 started mass production in June 2018. At present, samples have been produced, and the batch can accept orders. The batch delivery time is 4-6 weeks.
G101evn01.5 is a 10.1-inch a-Si TFT-LCD Module of AUO. It is equipped with WLED backlight, LED driver, backlight drive and touch-free. The working temperature of g101evn01.5 is - 20 ~ 60 ℃ ° C. 6 / 8-bit gray scale, wide viewing angle, landscape mode, white LED backlight, wide screen. G101evn01.5 as a MVA, constant black display, transmission LCD module product, g101evn01.5 can provide 400 CD / m ² The best viewing angle is full angle, and its response time is 25 (typ.) (TR + TD) Ms. Because each pixel uses 6-bit / 6-bit + FRC gray-scale signal, this product can display 262K / 16.7M color, and its color saturation is up to 45% (CIE1931). In terms of backlight, this product adopts WLED side entry light source with a service life of 15K hours, including LED driver. G101evn01.5 adopts LVDS (1 ch, 6 / 8-bit) signal interface. Its typical vertical refresh rate FV is 60Hz.
If you want to develop new products with g101evn01.5 LCD module, you are welcome to consult online.
