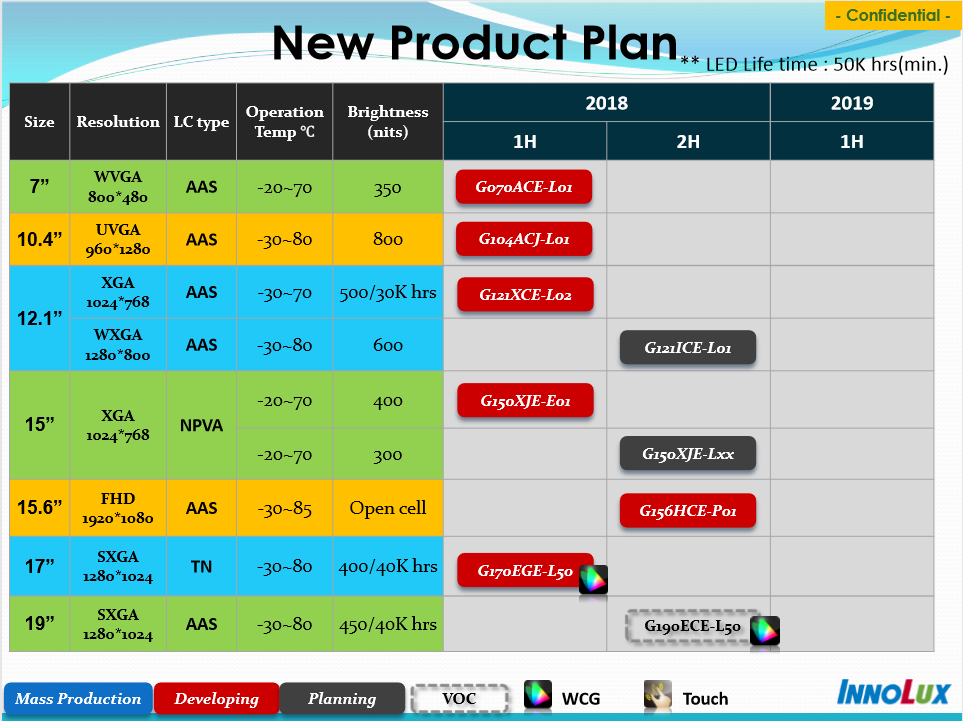

It can be seen from the above figure that the LCD screens of 7-inch, 10.4-inch, 12.1-inch, 15 inch, 15.6-inch and 17 inch have been mass produced in 1H in 2018. Among them, 12.1-inch and 15 inch models are planned to be mass produced in 2h in 2018. All LCD backlight life 50K hrs (min.)
|
SIZE |
Resolution |
Display Mode |
Operating Temp. |
Brightness（nits） |
2018 |
|
|
1H |
2H |
|||||
|
7” |
WVGA 800*480 |
AAS |
-20~70°C |
350 |
G070ACE-L01 |
|
|
10.4” |
UVGA 960*1280 |
AAS |
-30~80°C |
800 |
G104ACJ-L01 |
|
|
12.1” |
XGA 1024*768 |
AAS |
-30~70°C |
800/30K hrs |
G121XCE-L02 |
|
|
WXGA 1280*800 |
AAS |
-30~80°C |
600 |
G121ICE-L01 |
||
|
15” |
XGA 1024*768 |
NPVA |
-20~70°C |
400 |
G150XJE-E01 |
|
|
-20~70°C |
300 |
G150XJE-Lxx |
||||
|
15.6” |
FHD 1920*1024 |
AAS |
-30~85°C |
Open cell |
G156HCE-Por |
|
|
17” |
SXGA 1280*1024 |
TN |
-30~85°C |
400/40K hrs |
G170EGE-L50 |
|
|
19” |
SXGA 1280*1024 |
AAS |
-30~80°C |
450/40K hrs |
G190ECE-L50 |
|
Among them, the 2H quarter is the planned product and the subsequent production model.
