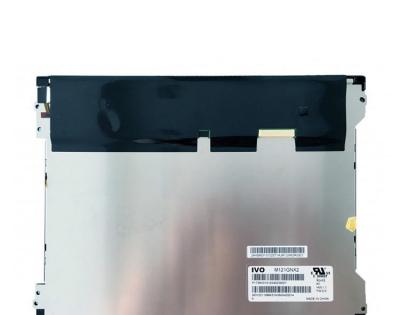

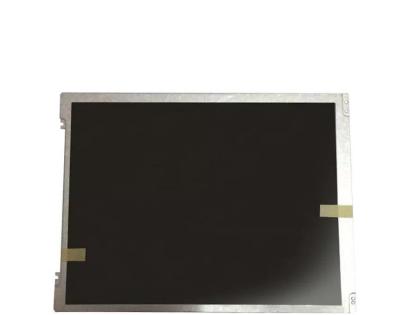

IVO M121GNX2 R1 Application Details
| Basic Detail : | Panel Brand | IVO | Model Name | M121GNX2 R1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight, With LED Driver,180°Reverse,6/8 bit, Matte | |||
IVO M121GNX2 R1 Optical Details
| Basic Information : | Luminance | 350 cd/m²(Min.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 16 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.325 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6974K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 96% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
IVO M121GNX2 R1 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.080*0.240 mm | Pixel Pitch (mm) | 0.240*0.240 mm [105PPI] | |
| Physical Size : | Active Viewing(mm) | 245.76(W)*184.32(H) mm | Bezel Area (mm) | 250.8(W)*189.4(H) mm |
| Outline Dim. (mm) | 279(W)*209(H) mm | Outline Depth | 6.0/9.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel | |||
| Other Features : | Weight | 518.7/545g (Typ./Max.) | Surface | Antiglare |
IVO M121GNX2 R1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 6.93W (Max.) |
IVO M121GNX2 R1 Interface Details
| Signal Systerm : | LVDS (2 ch, 6/8-bit) | |||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 250mA (Max.) | ||||
| Consumption | 0.825W (Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STM | MSB240420HE | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-080D | |||
IVO M121GNX2 R1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 4 strings | Position | Edge light type | ||||||
| Exchange | - | Lamp Shape | 4 strings | Lamp Life | 30K(Min.) Hours | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| STM | MSB24038P5A | 1.25mm | 5pins | 1 pcs | - | |||||||
| Backlight Driver : | With LED Driver | |||||||||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 240mA (Typ.) | ||||||||
| Consumption | 6.1W (Max.) | |||||||||||
IVO M121GNX2 R1 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 30 pcs / box | 520*370*315 mm | 23.0 Kgs |
