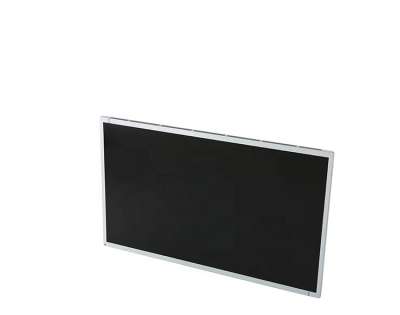

1、IVO M215GWW1 R0 Application Details
Basic Info : | Panel Brand | IVO | Panel Model | M215GWW1 R0 |
Diagonal Size | 21.5" | Application | Outdoor High Brightness，Automotive Display | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS | Vibration Rating | 2.9G (28.4 m/s²) | |
Specific Features : | Wide Temperature，3G Vibration，Ultra High Brightness，WLED Backlight，Life≥50K hours，With LED Driver，Matte | |||
2、IVO M215GWW1 R0 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.08275×0.24825 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.24825×0.24825 mm (H×V) [102PPI] | |
Mechanical Size : | Display Area | 476.64×268.11 mm (H×V) | Bezel Area | 479.84×271.31 mm (H×V) |
Outline Dim. | 495.6×292.2 mm (H×V) | Outline Depth | 8.36/20.5 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Holes & Brackets : | Side mounting holes (4-M3) on left, right, bezel | |||
Other Features : | Weight | 1.60/1.76Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3、IVO M215GWW1 R0 Optical Details
Basic Information : | Brightness | 1500 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 35 (Max.)(Tr+Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 94% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、IVO M215GWW1 R0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 52.65W (Max.) |
5、IVO M215GWW1 R0 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) | |||
Replacement | - | Amount | - | Position | Edge light type | ||||
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver | |||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||
MS242614RHA | - | 14 pins | 1 pcs | ||||||
Driver Electrical : | Voltage Input | 24±2.4V | Current Input | - | |||||
Consumption | 49.7W (Max.) | ||||||||
6、IVO M215GWW1 R0 Interface Details
Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 380mA (Max.) | ||
Interface Features : | Type | Connector | Position | - | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSCKT2407P30HB | 1.0 mm | 30 pins | 1 pcs | ||
7、IVO M215GWW1 R0 Carton Details
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
7 | N/A | N/A |
