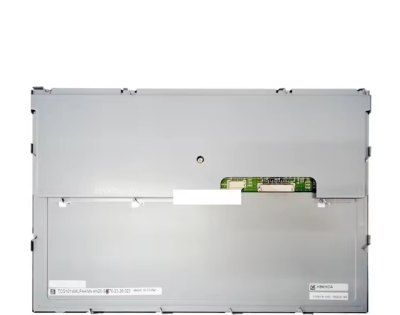

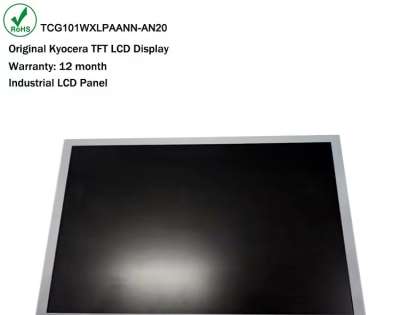

1、Kyocera TCG101WXLPAANN-AN20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG101WXLPAANN-AN20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 10.1" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，180° Reverse，Matte | |||
2、Kyocera TCG101WXLPAANN-AN20 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800 [WXGA] | Dot Pitch(W×H) | 0.0565×0.1695 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.1695×0.1695 mm [149PPI] | |
Mechanical Size : | Active Area (mm) | 216.96(W)×135.6(H) | Overall Dim. | 236(W)×156.8(H) mm |
Bezel Opening | 219.96(W)×138.6(H) mm | Outline Depth (mm) | 6.7/9.9 (Typ./Max.) mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 16:10 (H:V) | Orientation | Landscape type | |
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
Other Detail : | Mass | 500g (Typ.) | Surface | Antiglare |
3、Kyocera TCG101WXLPAANN-AN20 Optical Details
Basic Information : | Luminance(cd/m²) | 500 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 8/22 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.285; Wy:0.310 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 8665K | White Uniformity | ||
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 70% coverage |
Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG101WXLPAANN-AN20 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
5、Kyocera TCG101WXLPAANN-AN20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 350/460mA (Typ.) | ||||||
Signal Type : | LVDS (1 ch, 8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
HRS | DF19L-20P-1H(54) | 1.0mm | 20pins | 1 pcs | ||||||
6、Kyocera TCG101WXLPAANN-AN20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | ||||
Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | |||||
Interface Features : | Position | - | Backlight Driver | With LED Driver | ||||||
Type | Connector | |||||||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||
JST | SM08B-SHLS-TF(LF)(SN) | 1.0 mm | 8 pins | 1 pcs | ||||||
Driver Electrical : | Input Current | 275/360mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||||||
