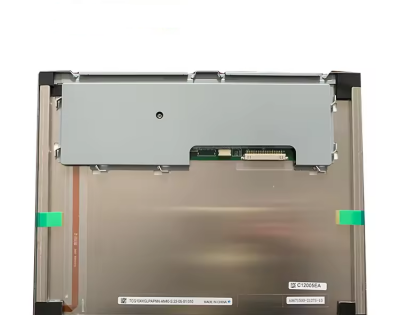

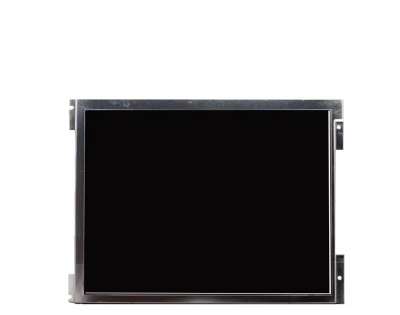

  • Kyocera 10.4 INCH LCD Screen Display TCG104VGLAAANN-AN20 For Industrial
  • Kyocera 10.4 INCH LCD Screen Display TCG104VGLAAANN-AN20 For Industrial
  • Model:TCG104VGLAAANN-AN20
  • Brand:Kyocera
  • Size:10.4inch
  • Resolution:640*480
  • Brightness:400 cd/m² (Typ.)
  • Perspective:70/70/60/70 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG104VGLAAANN-AN20   Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG104VGLAAANN-AN20

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    10.4"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~ 70 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    WLED BacklightLife70K hoursWith LED DriverU/D,L/R ReverseMatte


    2Kyocera TCG104VGLAAANN-AN20  Mechanical Details

    Pixel Features :

    Resolution

    640(RGB)×480, VGA

    Dot Pitch(W×H)

    0.110×0.330 mm


    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.330×0.330 mm  [76PPI]

    Mechanical Size :

    Active Area (W×H)


    211.2×158.4 mm

    Bezel Area (W×H).

    215.4×162.2 mm

    Outline Dimension (W×H)

    240.7×180.2 mm


    Outline Depth (mm)

    9.0±0.5 mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (W : H)

    Orientation

    Landscape type

    Holes & Brackets :

    Face mounting holes (2-Φ3.5, 2-R1.75) on   left, right bezel

    Other Detail :

    Mass

    455g (Typ.)

    Surface

    Antiglare





    3Kyocera TCG104VGLAAANN-AN20  Optical Details

    Basic Information :

    Luminance(cd/m²)

    400 cd/m² (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    70/70/60/70 (Typ.)(CR10)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    6 o'clock

    Response(ms)

    10/20 (Typ.)(Tr/Td) (ms)

    Color Performance :

    White Coordinate

    X:0.305; Y:0.315

    Display Colors

    262K (6-bit)

    Color Temperature

    7106K

    White Uniformity


    1931 Color Gamut :

    NTSC Ratio

    48%

    sRGB

    68% coverage

    Adobe RGB

    51% coverage

    DCI-P3

    50% coverage

    Rec.2020

    36% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Kyocera TCG104VGLAAANN-AN20   Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    Yes (180°)

    Time Controller (T-CON) :

    Embedded T-CON


    5Kyocera TCG104VGLAAANN-AN20  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    150/185mA (Typ./Max.)

    Voltage for Display Signals :

    0VIL0.8VDD; 2.0VDDVIHVDD

    Signal Type :

    Parallel RGB (1 ch, 6-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    Kyocera Elco

    04-6240-040-023-846+

    0.5mm

    40pins

    1 pcs













    6Kyocera TCG104VGLAAANN-AN20  Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    -

    Life Time

    70K(Typ.) (Hours)

    WLED Electrical :

    Current Input

    290/450mA (Typ./Max.)

    Voltage Input

    12.0±1.2V

    Consumption

    -



    Interface Features :

    Position

    -

    Backlight Driver

    With LED Driver

    Type

    Included in signal interface
