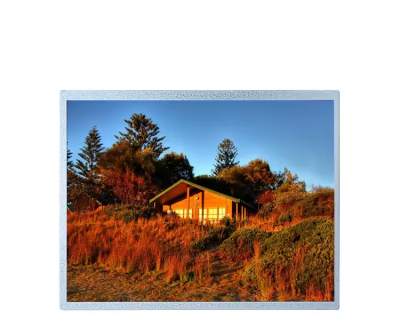

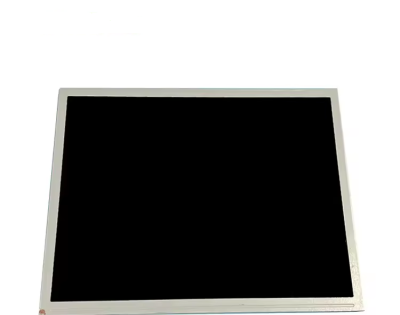

1、Kyocera TCG104VGLCHANN-AN40 Application Details
Basic Information : | Brand | Kyocera | Model | TCG104VGLCHANN-AN40 |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Outdoor High Brightness | |
Screen Size | 10.4" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | Wide Temperature，Ultra Hight Brightness，WLED Backlight，Life≥70K hours，With LED Driver，180° Reverse，Matte | |||
2、Kyocera TCG104VGLCHANN-AN40 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(W×H) | 0.110×0.330 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.330×0.330 mm [76PPI] | |
Mechanical Size : | Active Area (W×H) | 211.2×158.4 mm | Bezel Area (W×H). | 215.4×162.2 mm |
Outline Dimension | 230×180.2 mm (H×V) | Outline Depth (mm) | 10.5±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (W : H) | Orientation | Landscape type | |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 500g (Typ.) | Surface | Antiglare |
3、Kyocera TCG104VGLCHANN-AN40 Optical Details
Basic Information : | Luminance(cd/m²) | 1100 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 8/22 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | X:0.300; Y:0.325 | Display Colors | 16.7M (8-bit) |
Color Temperature | 7274K | White Uniformity | ||
1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 69% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、Kyocera TCG104VGLCHANN-AN40 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
5、Kyocera TCG104VGLCHANN-AN40 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 210/270mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
JAE | FI-SE20P-HFE | 1.25mm | 20pins | 1 pcs | ||||||
6、Kyocera TCG104VGLCHANN-AN40 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||
Replacement | - | Quantity | 3 strings | Life Time | 70K(Typ.) (Hours) | ||||
WLED Electrical : | Current Input | 60mA (Typ.) | Voltage Input | 21.5/23.8V (Typ./Max.) | |||||
Consumption | - | ||||||||
Interface Features : | Position | - | Backlight Driver | No | |||||
Type | Included in signal interface | ||||||||
