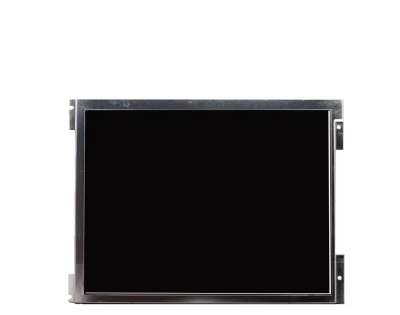

  • Nice price Kyocera 10.4 inch 640*480 TCG104VGLAAAFA-AA00 lcd touch display modul
  • Model:TCG104VGLAAAFA-AA00
  • Brand:Kyocera
  • Size:10.4inch
  • Resolution:640×480
  • Brightness:320 cd/m² (Typ.)
  • Perspective:70/70/60/70 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG104VGLAAAFA-AA00  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG104VGLAAAFA-AA00

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    10.4"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~ 70 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    With TouchWLED BacklightLife100K hoursU/D,L/R ReverseMatte


    2Kyocera TCG104VGLAAAFA-AA00  Mechanical Details

    Pixel Features :

    Resolution

    640(RGB)×480, VGA

    Dot Pitch(W×H)

    0.110×0.330 mm

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.330×0.330 mm  [76PPI]

    Mechanical Size :

    Active Area (W×H)

    211.2×158.4 mm

    Bezel Area (W×H).

    215.4×162.2 mm

    Outline Dimension

    240.7×180.2 mm (H×V)

    Outline Depth (mm)


    10.8±0.75 mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (W : H)

    Orientation

    Landscape type

    Touch Screen :

    Touch Points

    1 point

    TP Signal

    -

    TP Controller

    Without controller

    Touchscreen

    4-wire Resistive Touch

    Holes & Brackets :

    Face mounting holes (2-Φ3.5, 2-R1.75) on   left, right bezel

    Other Detail :

    Mass

    580g (Typ.)

    Surface

    Antiglare, Hard coating (2H)





    3Kyocera TCG104VGLAAAFA-AA00  Optical Details

    Basic Information :

    Luminance(cd/m²)

    320 cd/m² (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    70/70/60/70 (Typ.)(CR10)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    -

    Response(ms)

    10/20 (Typ.)(Tr/Td) ms

    Color Performance :

    White Coordinate

    Wx:0.305; Wy:0.315

    Display Colors

    262K (6-bit)

    Color Temperature

    7106K

    White Uniformity


    1931 Color Gamut :

    NTSC Ratio

    48%

    sRGB

    68% coverage

    Adobe RGB

    51% coverage

    DCI-P3

    50% coverage

    Rec.2020

    36% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Kyocera TCG104VGLAAAFA-AA00  Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    Yes (U/D, L/R)

    Time Controller (T-CON) :

    Embedded T-CON


    5Kyocera TCG104VGLAAAFA-AA00  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    150/185mA (Typ./Max.)

    Logic Voltage

    0VIL0.8V; 2.0VVIHVDD

    Signal Type :

    LVDS (1 ch, 8-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    Kyocera Elco

    04-6240-040-023-846+

    0.55mm

    40pins

    1 pcs













    6Kyocera TCG104VGLAAAFA-AA00  Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    -

    Life Time

    100K(Typ.) (Hours)

    WLED Electrical :

    Current Input

    60mA (Typ.)

    Voltage Input

    24.0/28.2V (Typ./Max.)

    Consumption

    -



    Interface Features :

    Position

    -

    Backlight Driver

    No

    Type

    Included in signal interface
