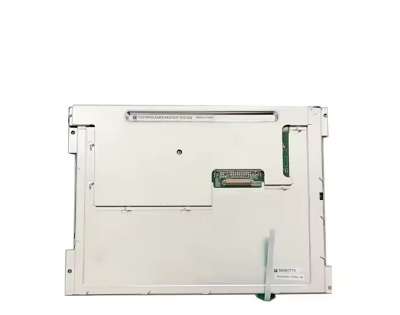

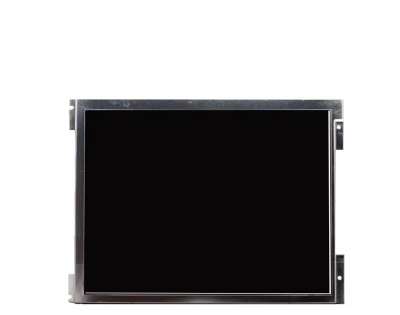

1、Kyocera TCG104VGLAAAFA-AA20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG104VGLAAAFA-AA20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 10.4" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | With Touch，WLED Backlight，Life≥100K hours，With LED Driver，U/D,L/R Reverse，Matte | |||
2、Kyocera TCG104VGLAAAFA-AA20 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(W×H) | 0.110×0.330 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.330×0.330 mm [76PPI] | |
Mechanical Size : | Active Area (W×H) | 211.2×158.4 mm | Bezel Area (W×H). | 215.4×162.2 mm |
Outline Dimension | 240.7×180.2 mm (H×V) | Outline Depth (mm) | 10.8±0.75 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (W : H) | Orientation | Landscape type | |
Touch Screen : | Touch Points | 1 point | TP Signal | - |
TP Controller | Without controller | Touchscreen | 4-wire Resistive Touch | |
Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
Other Detail : | Mass | 580g (Typ.) | Surface | Antiglare, Hard coating (2H) |
3、Kyocera TCG104VGLAAAFA-AA20 Optical Details
Basic Information : | Luminance(cd/m²) | 320 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 10/20 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | Wx:0.305; Wy:0.315 | Display Colors | 262K (6-bit) |
Color Temperature | 7106K | White Uniformity | ||
1931 Color Gamut : | NTSC Ratio | 48% | sRGB | 68% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG104VGLAAAFA-AA20 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG104VGLAAAFA-AA20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150/185mA (Typ./Max.) | ||||||
Logic Voltage | 0≤VIL≤0.8V; 2.3V≤VIH≤VIN | |||||||||
Signal Type : | Parallel RGB (1 ch, 6-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
Kyocera Elco | 04-6240-040-023-846+ | 0.5mm | 40pins | 1 pcs | ||||||
6、Kyocera TCG104VGLAAAFA-AA20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | ||||||
Replacement | - | Quantity | - | Life Time | 100K(Typ.) (Hours) | |||||||
Consumption | - | |||||||||||
Interface Features : | Position | - | Backlight Driver | With LED Driver | ||||||||
Type | Included in signal interface | |||||||||||
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 290/450mA (Typ./Max.) | ||||||||
