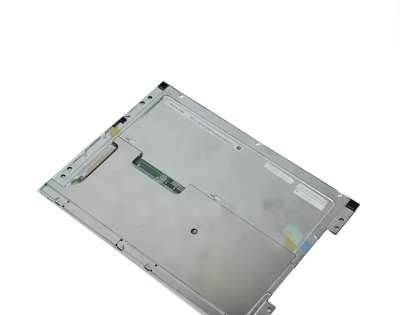

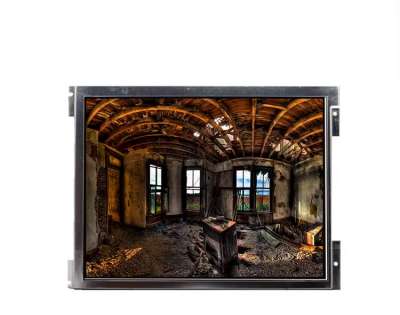

1、Kyocera TCG104SVLPEANN-AN30 Application Details
Basic Information : | Brand | Kyocera | Model | TCG104SVLPEANN-AN30 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 10.4" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | Hight Brightness，WLED Backlight，Life≥70K hours，With LED Driver，6/8bit， Matte | |||
2、Kyocera TCG104SVLPEANN-AN30 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(W×H) | 0.088×0.264 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.264×0.264 mm [96PPI] | |
Mechanical Size : | Active Area (W×H) | 211.2×158.4 mm | Bezel Area (W×H). | 215.4×162.2 mm |
Outline Dimension | 240.7×180.2 mm (H×V) | Outline Depth (mm) | 9.0 (Typ.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (W : H) | Orientation | Landscape type | |
Holes & Brackets : | Face mounting holes (4 pcs) | |||
Other Detail : | Mass | 475g | Surface | Antiglare |
3、Kyocera TCG104SVLPEANN-AN30 Optical Details
Basic Information : | Luminance(cd/m²) | 700 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 8/22 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.300; Wy:0.335 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 7136K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 73% coverage |
Adobe RGB | 55% coverage | DCI-P3 | 54% coverage | |
Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、Kyocera TCG104SVLPEANN-AN30 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、Kyocera TCG104SVLPEANN-AN30 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 270/330mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 6/8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
JAE | FI-X30SSLA-HF | 1.0mm | 30pins | 1 pcs | LVDS-30P1C8B-272A | |||||
6、Kyocera TCG104SVLPEANN-AN30 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | ||||||
Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | |||||||
Consumption | - | |||||||||||
Interface Features : | Position | - | Backlight Driver | With LED Driver | ||||||||
Type | Included in signal interface | |||||||||||
Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 380/580mA (Typ./Max.) | ||||||||
