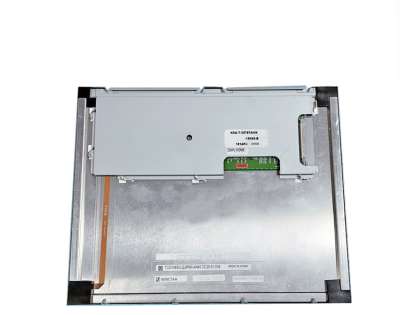

  • 10.4 inch KYOCERA 800x600 LVDS 1200nits TCG104SVLQJPNN-AN40-S outdoor high brigh

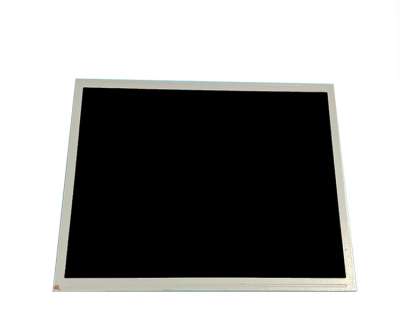

  • 10.4 inch KYOCERA 800x600 LVDS 1200nits TCG104SVLQJPNN-AN40-S outdoor high brigh
  • Model:TCG104SVLQJPNN-AN40
  • Brand:Kyocera
  • Size:10.4inch
  • Resolution:800×600
  • Brightness:1200 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 80 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG104SVLQJPNN-AN40  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG104SVLQJPNN-AN40

    Type

    LCM     a-Si TFT-LCD

    Used For

    IndustrialOutdoor High   Brightness

    Screen Size

    10.4"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -30 ~ 80 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    Wide TemperatureUltra High BrightnessWLED BacklightLife70K hoursWith LED DriverMatte


    2Kyocera TCG104SVLQJPNN-AN40  Mechanical Details

    Pixel Features :

    Resolution

    800(RGB)×600, SVGA

    Dot Pitch(W×H)

    0.088×0.264 mm

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.264×0.264 mm  [96PPI]

    Mechanical Size :

    Active Area (W×H)

    211.2×158.4 mm

    Bezel Area

     215.4×161.8   mm (H×V)

    Outline Dimension

    230×180.2   mm (H×V)

    Outline Depth (mm)

    10.5   (Typ.) mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (W : H)

    Orientation

    Landscape type

    Holes & Brackets :

    Side mounting holes (4-M3) on left, right   bezel

    Other Detail :

    Mass

    475g (Typ.)

    Surface

    Antiglare





    3Kyocera TCG104SVLQJPNN-AN40  Optical Details

    Basic Information :

    Luminance(cd/m²)

    1200 cd/m² (Typ.)

    Contrast Ratio

    750:1 (Typ.) (Transmissive)

    Viewing Angle

    85/85/85/85 (Typ.)(CR10)

    Display Mode

    AWV, Normally Black, Transmissive

    Best View on

    Symmetry

    Response(ms)

    18/12 (Typ.)(Tr/Td) ms)

    Color Performance :

    White Coordinate


    Wx:0.320; Wy:0.345

    Display Colors


    16.7M (8-bit)

    Color Temperature

    6304K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    51%

    sRGB

    71% coverage

    Adobe RGB

    53% coverage

    DCI-P3

    53% coverage

    Rec.2020

    38% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Dispaly Performance :

    Outdoor Visibility

    Sunlight Readable

    Transmittance

    -


    4Kyocera TCG104SVLQJPNN-AN40  Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    No


    5Kyocera TCG104SVLQJPNN-AN40  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    250/300mA (Typ./Max.)

    Signal Type :

    LVDS (1 ch, 8-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    JAE

    FI-X30SSLA-HF

    1.0mm

    30pins

    1 pcs

    LVDS-30P1C8B-273A












    6Kyocera TCG104SVLQJPNN-AN40 Backlight Details

    Backlight Features:

    Shape

    4   strings

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    8S4P

    Life Time

    70K(Typ.) (Hours)

    Consumption

    -



    Interface Features :

    Position

    -

    Backlight Driver

    With LED Driver

    Type

    Included in signal interface

    Driver Electrical :

    Voltage Supply

    12.0±1.2V

    Current Supply

    570/740mA (Typ./Max.)
