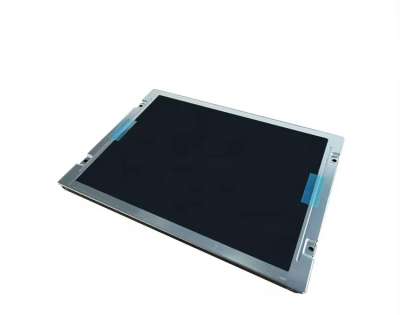

1、Kyocera TCG104XGLPAPNN-AN40-TA Application Details
Basic Information : | Brand | Kyocera | Model | TCG104XGLPAPNN-AN40-TA |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Outdoor High Brightness | |
Screen Size | 10.4" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥70K hours，With LED Driver，6/8bit，Matte | |||

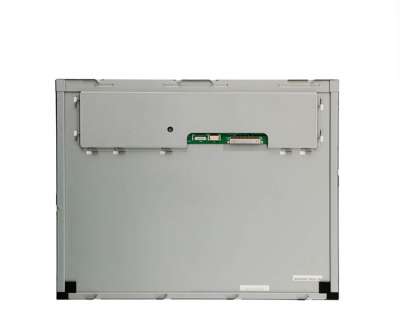

2、Kyocera TCG104XGLPAPNN-AN40-TA Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.0685×0.2055 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (mm) | 0.2055×0.2055 (H×V) [123PPI] | |
Mechanical Size : | Active Area (mm) | 210.4(H) × 157.8(V) | Bezel Area (mm) | 215.4(H) × 161.8(V) |
Outline Dimension .(mm) | 230(H) × 180.2(V) | Outline Depth (mm) | 10.5±0.5 | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (W : H) | Orientation | Landscape type | |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 480g (Typ.) | Surface | Antiglare |
3、Kyocera TCG104XGLPAPNN-AN40-TA Optical Details
Basic Information : | Luminance | 1300 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AWV, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 18/12 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.315; Wy:0.340 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6304K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 51% | sRGB | 71% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、Kyocera TCG104XGLPAPNN-AN40-TA Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、Kyocera TCG104XGLPAPNN-AN40-TA Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 270/350mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 6/8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
I-PEX | 20186-020E-11F | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-010H | |||||
6、Kyocera TCG104XGLPAPNN-AN40-TA Backlight Details
Backlight Features: | Shape | Type | WLED | Position | Edge light type | |||||||||||
Replacement | - | Quantity | Life Time | 70K(Typ.) (Hours) | ||||||||||||
Consumption | - | |||||||||||||||
Interface Features : | Position | - | Backlight Driver | With LED Driver | ||||||||||||
Type | Included in signal interface | |||||||||||||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||||||
JST | SM06B-SHLS-TF(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | ||||||||||||
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.87/1.12A (Typ./Max.) | ||||||||||||
7、Kyocera TCG104XGLPAPNN-AN40-TA Packing Details
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
20 | 495×410×331 | N/A |
