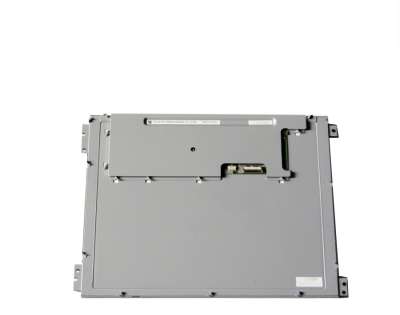

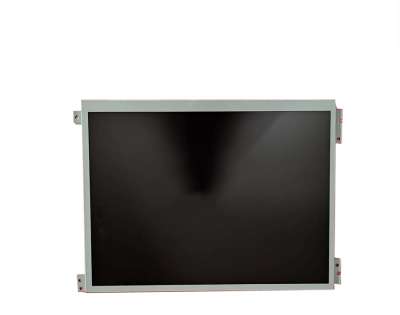

1、KyoceraTCG121SVLPAANN-AN20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG121SVLPAANN-AN20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 12.1" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | WLED Backlight，Life≥70K hours，With LED Driver，Matte | |||
2、Kyocera TCG121SVLPAANN-AN20 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (mm) | 0.3075×0.3075 (H×V) [82PPI] | |
Mechanical Size : | Active Area | 246×184.5 mm (H×V) | Bezel Area | 249.0×187.5 mm (H×V) |
Outline Dimension . | 278.3×207.5 mm (H×V) | Outline Depth | 9.5±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (W : H) | Orientation | Landscape type | |
Holes & Brackets : | Face mounting holes (4-Φ3.4, 3-R1.7) on left, right slugs | |||
Other Detail : | Mass | 645g (Typ.) | Surface | Antiglare |
3、Kyocera TCG121SVLPAANN-AN20 Optical Details
Basic Information : | Luminance(cd/m²) | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 4/22 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | Wx:0.300; Wy:0.310 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 7525K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 54% | sRGB | 71% coverage |
Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG121SVLPAANN-AN20 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、Kyocera TCG121SVLPAANN-AN20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 280/340mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch,8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
JAE | FI-X30SSLA-HF | 1.0mm | 30pins | 1 pcs | LVDS-30P1C8B-274A | |||||
6、Kyocera TCG121SVLPAANN-AN20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | ||||||
Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | |||||||
Consumption | - | |||||||||||
Interface Features : | Position | - | Backlight Driver | With LED Driver | ||||||||
Type | Included in signal interface | |||||||||||
Lamp Electrical : | Voltage Input | 12.0±1.2V | Current Input | 400/600mA (Typ./Max.) | ||||||||
