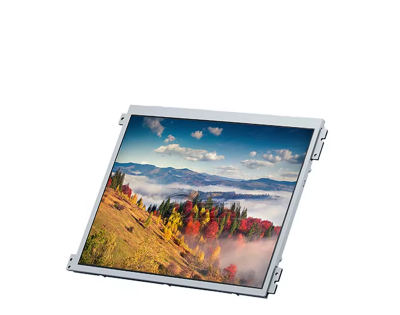

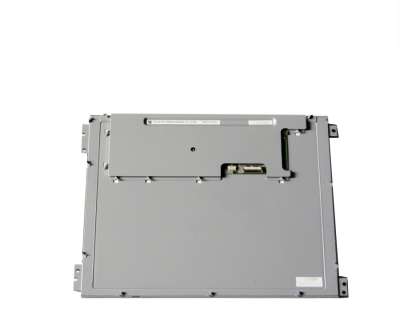

1、Kyocera TCG121SVLPJANN-AN50 Application Details
Basic Information : | Brand | Kyocera | Model | TCG121SVLPJANN-AN50 |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Outdoor High Brightness | |
Screen Size | 12.1" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | Hight Brightness，WLED Backlight，Life≥70K hours，Matte | |||
2、Kyocera TCG121SVLPJANN-AN50 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (mm) | 0.3075×0.3075 (H×V) [82PPI] | |
Mechanical Size : | Active Area | 246×184.5 mm (H×V) | Bezel Area | 249.0×187.5 mm (H×V) |
Outline Dimension . | 278.3×207.5 mm (H×V) | Outline Depth | 9.5±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (W : H) | Orientation | Landscape type | |
Holes & Brackets : | Face mounting holes (4-Φ3.4, 3-R1.7) on left, right slugs | |||
Other Detail : | Mass | 650g (Typ.) | Surface | Antiglare |
3、Kyocera TCG121SVLPJANN-AN50 Optical Details
Basic Information : | Luminance(cd/m²) | 800 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 4/22 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | Wx:0.295; Wy:0.315 | Display Colors | 16.7M (8-bit) |
Color Temperature | 7778K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 51% | sRGB | 71% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、Kyocera TCG121SVLPJANN-AN50 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、Kyocera TCG121SVLPJANN-AN50 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 280/340mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch,8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
JAE | FI-X30SSLA-HF | 1.0mm | 30pins | 1 pcs | ||||||
6、Kyocera TCG121SVLPJANN-AN50 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | ||||||||
Replacement | - | Quantity | 7S3P | Life Time | 70K(Typ.) (Hours) | |||||||||
Lamp Electrical : | Input Voltage | 21.6/23.8V (Typ./Max.) | Input Current | 60mA (Typ.) | ||||||||||
Interface Features : | Position | - | Backlight Driver | No | ||||||||||
Type | Included in signal interface | |||||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||||
JST | SM06B-SHLS-TF(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-AAACCC | |||||||||
