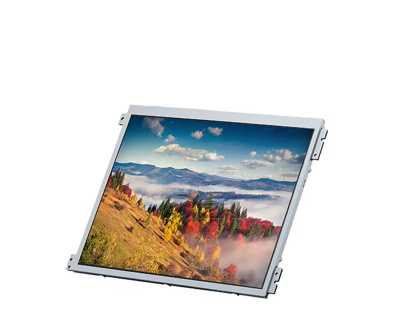

  • TCG121SVLQAPNN-AN20 Kyocera 12.1 inch LCD Display Screen TFT IPS LCD Panel
  • Model:TCG121SVLQAPNN-AN20
  • Brand:Kyocera
  • Size:12.1inch
  • Resolution:800×600
  • Brightness:450 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG121SVLQAPNN-AN20  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG121SVLQAPNN-AN20

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    12.1"



    Environment :

    Storage Temp.

    -20 ~ 70 °C

    Operating Temp.

    -20 ~70 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    WLED BacklightLife70K hoursWith LED DriverMatte


    2Kyocera TCG121SVLQAPNN-AN20  Mechanical Details

    Pixel Features :

    Resolution

    800(RGB)×600, SVGA

    Dot Pitch(mm)

    0.1025×0.3075 (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (mm)

    0.3075×0.3075 (H×V)  [82PPI]

    Mechanical Size :

    Active Area

    246×184.5 mm (H×V)

    Bezel Area

    249.0×187.5 mm (H×V)

    Outline Dimension .

    278.3×207.5 mm (H×V)

    Outline Depth

    6.8/10.0 (Typ./Max.)

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (W : H)

    Orientation

    Landscape type

    Holes & Brackets :

    Face mounting holes (4-Φ3.4, 3-R1.7) on   left, right slugs

    Other Detail :

    Mass

    630g (Typ.)

    Surface

    Antiglare





    3Kyocera TCG121SVLQAPNN-AN20 Optical Details

    Basic Information :

    Luminance(cd/m²)

    450 cd/m² (Typ.)

    Contrast Ratio

    650:1 (Typ.) (Transmissive)

    Viewing Angle

    85/85/85/85 (Typ.)(CR10)

    Display Mode

    AWV, Normally Black, Transmissive

    Best View on

    Symmetry

    Response(ms)

    18/12 (Typ.)(Tr/Td)

    Color Performance :

    White Coordinate

    Wx:0.315; Wy:0.340

    Display Colors

    16.2M (6-bit + FRC)

    Color Temperature

    6304K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    51%

    sRGB

    71% coverage

    Adobe RGB

    53% coverage

    DCI-P3

    53% coverage

    Rec.2020

    38% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Kyocera TCG121SVLQAPNN-AN20  Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    No


    5Kyocera TCG121SVLQAPNN-AN20  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    290/370mA (Typ./Max.)

    Signal Type :

    LVDS (1 ch, 8-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    JAE

    FI-X30SSLA-HF

    1.0mm

    30pins

    1 pcs

    LVDS-30P1C8B-272A












    6Kyocera TCG121SVLQAPNN-AN20 Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    -

    Life Time

    70K(Typ.) (Hours)

    Interface Features :

    Position

    -

    Backlight Driver

    With LED Driver

    Type

    Included in signal interface

    Driver Electrical :

    Input Current

    500/630mA (Typ./Max.)

    Input Voltage

    12.0V (Typ.)
