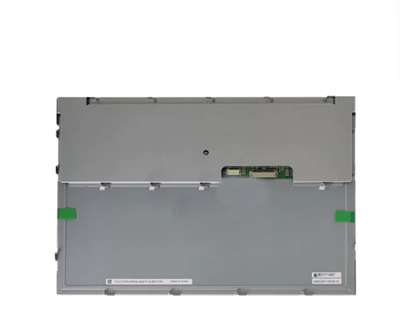

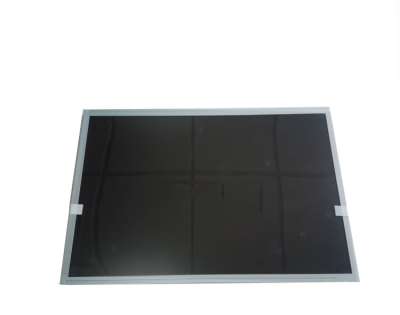

1、Kyocera TCG121WXLPAPNN-AN20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG121WXLPAPNN-AN20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 12.1" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，Matte | |||
2、Kyocera TCG121WXLPAPNN-AN20 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800 [WXGA] | Dot Pitch (mm) | 0.068×0.204 | |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (mm) | 0.204×0.204 [124PPI] | ||
Mechanical Size : | Active Area (mm) | 261.12(H) × 163.2(V) | Bezel Area (mm) | 264.1(H) × 166.2(V) | |
Outline Dimension (mm) | 277.7(H) × 182.5(V) | Outline Depth | 9.8 (Typ.) mm | ||
Outline Features : | Form Style | Flat Rectangle | Outline Shape | ||
Aspect Ratio (W:H) | 16:10 (H:V) | Orientation | Landscape type | ||
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | ||||
Other Detail : | Mass | 680g (Typ.) | Surface | Antiglare | |
3、Kyocera TCG121WXLPAPNN-AN20 Optical Details
Basic Information : | Luminance(cd/m²) | 500 cd/m² (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AWV, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 18/12 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | X:0.300; Y:0.335 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 7136K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 70% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG121WXLPAPNN-AN20 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
5、Kyocera TCG121WXLPAPNN-AN20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 375/490mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
HRS | DF19L-20P-1H | 1.0mm | 20pins | 1 pcs | ||||||
6、Kyocera TCG121WXLPAPNN-AN20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||||||||
Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | ||||||||||
Interface Features : | Position | - | Backlight Driver | With LED Driver | |||||||||||
Type | Connector | ||||||||||||||
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment | |||||||||
JST | SM08B-SHLS-G-TF(LF)(SN) | 1 pcs | 1.0 mm | 8 pins | |||||||||||
Driver Electrical : | Input Current | 460/600mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | |||||||||||
7、Kyocera TCG121WXLPAPNN-AN20 Packing Features
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
14 | 540×360×320 | N/A |
