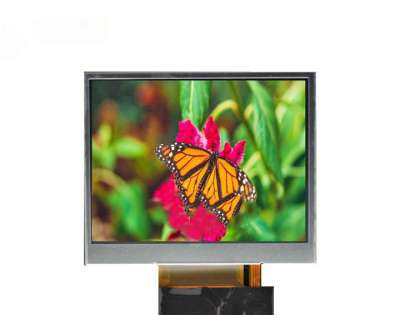

1、Kyocera TCG035QVLPAANN-AN00 Application Details
Basic Information : | Brand | Kyocera | Model | TCG035QVLPAANN-AN00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 3.5" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight，Life≥50K hours，Matte | |||
2、Kyocera TCG035QVLPAANN-AN00 Mechanical Details
Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.0735×0.2205 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2205×0.2205 (H×V) [115PPI] | |
Mechanical Size : | Active Area(mm) | 70.56(H) × 52.92(V) | Bezel Area(mm) | 72.26(H) × 54.62(V) |
Outline Dim.(mm) | 76.9(H) × 63.9(V) | Depth(mm) | 4.9±0.3 | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
Other Spec : | Weight | 40.0g | Treatment | Antiglare |
3、Kyocera TCG035QVLPAANN-AN00 Optical Details
Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 8/22 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | X:0.315; Y:0.330 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 6371K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 51% | sRGB | 70% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG035QVLPAANN-AN00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG035QVLPAANN-AN00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 8.0/11.3mA (Typ./Max.) | ||
Signal Type : | Parallel RGB (1 ch, 8-bit) + SPI | Signal Voltage | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||
Interface Features : | Position | - | Type | FPC | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
1 pcs | 50 pins | 0.5 mm | ||||
6、Kyocera TCG035QVLPAANN-AN00 Backlight Details
Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | 2 strings | Life Time | 60K(Typ.) (Hours) | |
Lamp Electrical : | Voltage Supply | 12.5/13.3V (Typ./Max.) | Current Supply | 15mA (Typ.) | ||
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver | No | |||||
