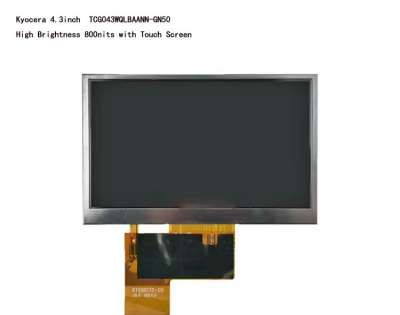

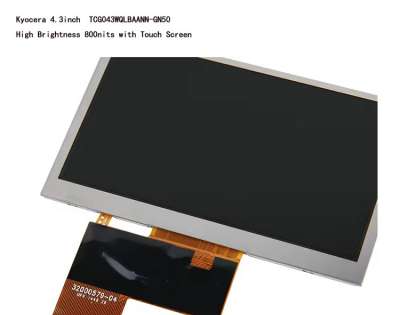

1、Kyocera TCG043WQLBAANN-GN50 Application Details
Basic Information : | Brand | Kyocera | Model | TCG043WQLBAANN-GN50 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 4.3" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | Hight Brightness，WLED Backlight，Life≥100K hours，Glossy | |||
2、Kyocera TCG043WQLBAANN-GN50 Mechanical Details
Pixel Features : | Resolution | 480(RGB)×272 [WQVGA] | Dot Pitch (W×H) | 0.066×0.198 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.198×0.198 mm [128PPI] | |
Mechanical Size : | Active Area(mm) | 95.04(W)×53.856(H) | Overall Dim. | 105.5(W)×67.2(H) mm |
Bezel Opening | 98.7(W)×57.5(H) mm | Depth(mm) | 5.9±0.3 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 16:9 | Orientation | Landscape type | |
Other Spec : | Weight | 75.0g | Surface | Glare (Haze 0%) |
3、Kyocera TCG043WQLBAANN-GN50 Optical Details
Basic Information : | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 25 (Typ.)(Tr+Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.320; Wy:0.350 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 6022K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 46% | sRGB | 64% coverage |
Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、Kyocera TCG043WQLBAANN-GN50 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG043WQLBAANN-GN50 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 14.2/21.3mA (Typ./Max.) | ||
Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
Interface Features : | Position | - | Type | FPC | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
1 pcs | 40 pins | 0.5 mm | ||||
6、Kyocera TCG043WQLBAANN-GN50 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 100K(Typ.) (Hours) | |
Lamp Electrical : | Voltage Supply | 21.0/24.7V (Typ./Max.) | Current Supply | 60mA (Typ.) | ||
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver | No | |||||
