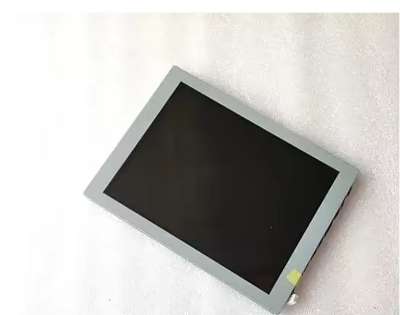

1、Kyocera TCG057QVLCPANN-GN00 Application Details
Basic Information : | Brand | Kyocera | Model | TCG057QVLCPANN-GN00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 5.7" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight，Life≥50K hours，U/D,L/R Reverse，Glossy | |||
2、Kyocera TCG057QVLCPANN-GN00 Mechanical Details
Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch (W×H) | 0.120×0.360 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.360×0.360 mm [70PPI] | |
Mechanical Size : | Active Area (H×V) | 115.2×86.4 mm | Overall Dim. (H×V) | 144×104.8 mm |
Bezel Opening (H×V) | 118.4×89.6 mm | Overall Depth | 13.0±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 | Orientation | Landscape type | |
Other Spec : | Mass | 210g (Typ.) | Surface | Glare (Haze 0%) |
Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
3、Kyocera TCG057QVLCPANN-GN00 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 10/25 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | X:0.340; Y:0.360 | Display Colors | 262K (6-bit) |
Color Temperature | 5208K | White Uniformity | - |
4、Kyocera TCG057QVLCPANN-GN00 Electronics Details
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG057QVLCPANN-GN00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 60/80mA (Typ./Max.) | ||
Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
Kyocera Elco | 08-6210-033-340-800+ | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020A | |
6、Kyocera TCG057QVLCPANN-GN00 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | |
Interface Features : | Position | - | Type | Connector | ||
Backlight Driver | No | |||||
