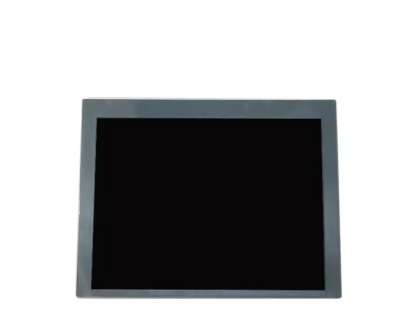

  • 5.7 Inch 320*240 LCD Screen TCG057QVLGC-G00 For Kyocera
  • Model:TCG057QVLGC-G00
  • Brand:Kyocera
  • Size:5.7inch
  • Resolution:320*240
  • Brightness:400 cd/m² (Typ.)
  • Perspective:80/80/80/80
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG057QVLGC-G00  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG057QVLGC-G00

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    5.7"



    Environment :

    Storage Temp.

    -30 ~~ 80 °C

    Operating Temp.

    -20 ~~ 70 °C

    RoHS

    RoHS



    Typical Features :

    With TouchWLED BacklightLife70K hoursU/D,L/R ReverseGlossy


    2Kyocera TCG057QVLGC-G00  Mechanical Details

    Pixel Features :

    Resolution

    320(RGB)×240, QVGA

    Dot Pitch (W×H)

    0.120×0.360 mm

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.360×0.360 mm  [70PPI]

    Mechanical Size :

    Active Area  (H×V)

    115.2×86.4 mm

    Overall Dim.  (H×V)

    134.5(W)×103.4(H) mm

    Bezel Opening

    118.4×89.6 mm (H×V)

    Overall Depth

    9.35±0.8

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio

    4:3(W:H)

    Orientation

    Landscape type

    Touch Panel :



    Touch Points

    -

    Touch Panel

    4-wire Resistive Touch

    TP Controller

    Without controller

    Touch Signal

    -

    Fixation :

    Without

    Other Spec :

    Mass

    TBD

    Surface

    Glare   (Haze 0%), Hard coating (2H)



    3Kyocera TCG057QVLGC-G00  Optical Details

    Basic Information :

    Luminance(cd/m²)

    400 (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    80/80/80/80 (Typ.)(CR5)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    -

    Response(ms)

    35 (Typ.)(Tr+Td) ms

    Color Performance :

    White Coordinate

    Wx:0.320; Wy:0.340

    Display Colors

    262K (6-bit)

    Color Temperature

    6066K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    60%

    sRGB

    76% coverage

    Adobe RGB

    60% coverage

    DCI-P3

    62% coverage

    Rec.2020

    45% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Kyocera TCG057QVLGC-G00  Electronics Details

    Reverse Scan :

    Yes (U/D, L/R)

    Time Controller (T-CON) :

    Embedded T-CON


    5Kyocera TCG057QVLGC-G00  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    80/105mA (Typ./Max.)

    Signal Type :

    Parallel RGB (1 ch, 6-bit)

    Logic Voltage :

    0VIL0.3VDD; 0.7VDDVIH5.5V

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Quantity

    Pins

    Pitch

    Pin Configuration

    IRISO

    IMSA-9681S-33A-GF

    1 pcs

    33 pins

    0.5 mm

    DRGB-33P1C6B-020A


    6Kyocera TCG057QVLGC-G00  Backlight Details

    Backlight Features:

    Shape

    2 strings

    Type

    WLED

    Position

    Edge light type (Bottom side)

    Replacement

    -

    Quantity

    2 strings

    Life Time

    70K(Typ.) (Hours)

    Lamp Electrical :

    Input Voltage

    9.0/10.6V (Typ./Max.)

    Input Current

    60mA (Typ.)

    Interface Features :

    Position

    -


    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    JST

    PHR-4

    2.0 mm

    4 pins

    1 pcs

    BLE-4PINS-AACC

    Backlight Driver

    No
