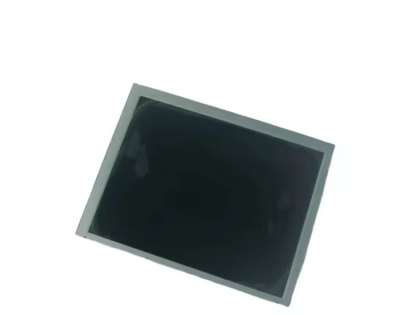

1、Kyocera TCG057QVLPEANN-GN00-S Application Details
Basic Information : | Brand | Kyocera | Model | TCG057QVLPEANN-GN00-S |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 5.7" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight，Life≥50K hours，U/D,L/R Reverse | |||
2、Kyocera TCG057QVLPEANN-GN00-S Mechanical Details
Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch (W×H) | 0.120×0.360 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.360×0.360 mm [70PPI] | |
Mechanical Size : | Active Area (H×V) | 115.2×86.4 mm | Overall Dim. (H×V) | 134.5(W)×103.4(H) mm |
Bezel Opening (H×V) | 118.4×89.6 mm | Overall Depth | 6.0/8.5 (Typ./Max.) mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 | Orientation | Landscape type | |
Mounting : | Without | |||
3、Kyocera TCG057QVLPEANN-GN00-S Optical Details
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | ||
Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
Color Temperature | - | White Uniformity | - |
4、Kyocera TCG057QVLPEANN-GN00-S Electronics Details
Reverse Scan : | Yes (U/D, L/R) |
Vertical Frequency : | 60Hz |
5、Kyocera TCG057QVLPEANN-GN00-S Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
Signal Type : | Parallel RGB (1 ch, 6-bit) | Logic Voltage : | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
IRISO | IMSA-9681S-33A-GF | 1 pcs | 33 pins | 0.5 mm | ||
6、Kyocera TCG057QVLPEANN-GN00-S Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||||
Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | ||||||
Interface Features : | Position | - | Type | Connector | |||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
JST | PHR-4 | 2.0 mm | 4 pins | 1 pcs | |||||||
Backlight Driver | No | ||||||||||
