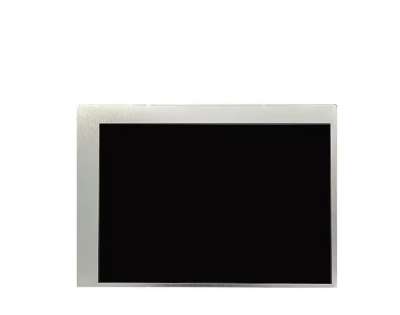

1、Kyocera TCG057VGLCCANN-GN00 Application Details
Basic Information : | Brand | Kyocera | Model | TCG057VGLCCANN-GN00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 5.7" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight，U/D,L/R Reverse | |||
2、Kyocera TCG057VGLCCANN-GN00 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch (W×H) | 0.060×0.180 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.180×0.180 mm [141PPI] | |
Mechanical Size : | Active Area | 115.2(W)×86.4(H) mm | Overall Dim. (H×V) | 127.2(W)×100.4(H) mm |
Bezel Opening | 117.2(W)×88.4(H) mm | Overall Depth | 5.7 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 | Orientation | Landscape type |
3、Kyocera TCG057VGLCCANN-GN00 Optical Details
Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 10/25 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | Wx:0.320; Wy:0.340 | Display Colors | 262K (6-bit) |
Color Temperature | 6066K | White Uniformity | - |
4、Kyocera TCG057VGLCCANN-GN00 Electronics Details
Reverse Scan : | Yes (U/D, L/R) |
Vertical Frequency : | 60Hz |
5、Kyocera TCG057VGLCCANN-GN00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 170/220mA (Typ./Max.) | |
Signal Type : | Parallel RGB (1 ch, 6-bit) | Logic Voltage : | - | ||
Interface Features : | Position | - | Type | Connector | |
6、Kyocera TCG057VGLCCANN-GN00 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 40K(Typ.) (Hours) | |
Interface Features : | Position | - | Type | Connector | ||
Backlight Driver | No | |||||
