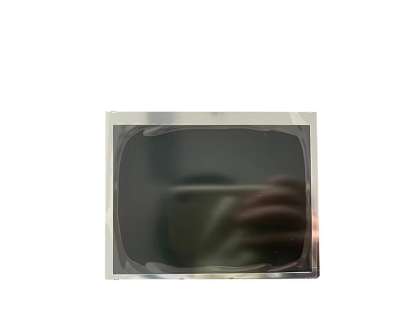

1、KyoceraTCG057VGLDHANN-GN00 Application Details
Basic Information : | Brand | Kyocera | Model | TCG057VGLDHANN-GN00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 5.7" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight，Life≥50K hours， U/D,L/R Reverse，Glossy | |||
2、Kyocera TCG057VGLDHANN-GN00 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch (W×H) | 0.060×0.180 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.180×0.180 mm [141PPI] | |
Mechanical Size : | Active Area | 115.2(W)×86.4(H) mm | Bezel Area | 118.4×89.6 mm (H×V) |
Outline Dim. | 144×104.8 mm (H×V) | Overall Depth | 13.0±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 | Orientation | Landscape type | |
Fixation : | Rear mounting holes (4-Φ2.6) | |||
Other Detail : | Mass | 210g (Typ.) | Surface | Glare (Haze 0%) |
3、KyoceraTCG057VGLDHANN-GN00 Optical Details
Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 10/25 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | Wx:0.340; Wy:0.360 | Display Colors | 262K (6-bit) |
Color Temperature | 5208K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 67% coverage |
Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG057VGLDHANN-GN00 Electronics Details
Frame Frequency : | 55Hz |
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG057VGLDHANN-GN00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150/195mA (Typ./Max.) | ||||||
Signal Type : | Parallel RGB (1 ch, 6-bit) | Logic Voltage : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
IRISO | IMSA-9632S-33Z02-GF1 | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020A | |||||
6、Kyocera TCG057VGLDHANN-GN00 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||||
Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | ||||||
Interface Features : | Position | - | Type | Included in signal interface | |||||||
Lamp Electrical : | Voltage Input | 23.1/25.9V (Typ./Max.) | Current Input | 25mA (Typ.) | |||||||
Backlight Driver | No | ||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
JST | SHLP-06V-S-B | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-AAACCC | ||||||
