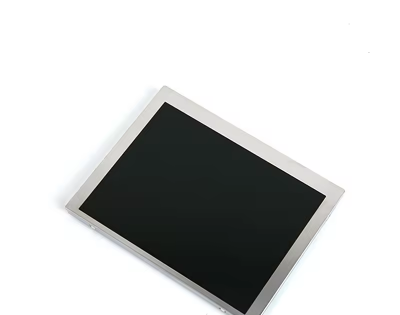

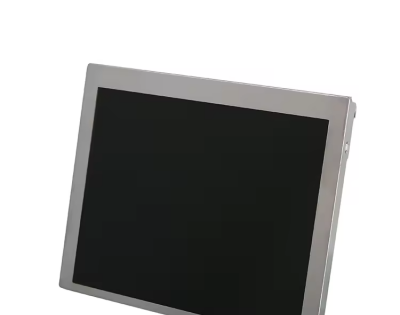

  • TCG057VGLAAANN-GN20 5.7 inch KYOCERA 640x480 TFT LCD Display Panel
  • TCG057VGLAAANN-GN20 5.7 inch KYOCERA 640x480 TFT LCD Display Panel
  • Model:TCG057VGLAAANN-GN20
  • Brand:Kyocera
  • Size:5.7inch
  • Resolution:640*480
  • Brightness:450 cd/m² (Typ.)
  • Perspective:80/80/80/80
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG057VGLAAANN-GN20  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG057VGLAAANN-GN20

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    5.7"



    Environment :

    Storage Temp.

    -30 ~~ 80 °C

    Operating Temp.

    -20 ~~ 70 °C

    RoHS

    RoHS



    Typical Features :

    WLED BacklightLife50K hours With LED Driver180°Reverse


    2Kyocera TCG057VGLAAANN-GN20  Mechanical Details

    Pixel Features :

    Resolution

    640(RGB)×480, VGA

    Dot Pitch (W×H)

    0.060×0.180 mm

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.180×0.180 mm  [141PPI]

    Mechanical Size :

    Active Area

    115.2(W)×86.4(H) mm

    Overall Dim.

    127.2(W)×100.4(H) mm

    Bezel Opening

    117.2(W)×88.4(H) mm

    Overall Depth

    5.7±0.3 mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3

    Orientation

    Landscape type

    Fixation :

    Without

    Other Detail :

    Mass

    110g (Typ.)

    Surface

    -



    3Kyocera TCG057VGLAAANN-GN20 Optical Details

    Basic Information :

    Luminance(cd/m²)

    450 (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    80/80/80/80 (Typ.)(CR5)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    -

    Response(ms)

    10/25 (Typ.)(Tr/Td) ms

    Color Performance :

    White Coordinate

    Wx:0.320; Wy:0.340

    Display Colors

    262K (6-bit)

    Color Temperature

    6066K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    52%

    sRGB

    69% coverage

    Adobe RGB

    53% coverage

    DCI-P3

    53% coverage

    Rec.2020

    39% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    4Kyocera TCG057VGLAAANN-GN20  Electronics Details

    Reverse Scan :

    60Hz

    Refresh Rate :

    Embedded T-CON


    5Kyocera TCG057VGLAAANN-GN20  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    180/235mA   (Typ./Max.)

    Signal Type :

    LVDS (1 ch, 6-bit)

    Consumption

    -

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    HRS

    DF19G-30P-1H

    1.0 mm

    30pins

    1 pcs













    6Kyocera TCG057VGLAAANN-GN20  Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    -

    Life Time

    50K(Typ.) (Hours)

    Interface Features :

    Position

    -


    Type

    Included in signal interface

    Lamp Electrical :

    Voltage Input

    5.0V (Typ.)

    Current Input

    290/380mA (Typ./Max.)

    Backlight Driver :

    With LED Driver
