1、Kyocera TCG062HVLDB-G20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG062HVLDB-G20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 6.2" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | With Touch，WLED Backlight， With LED Driver，Bar Display，U/D,L/R Reverse，Glossy | |||
2、Kyocera TCG062HVLDB-G20 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×240, HVGA | Dot Pitch (W×H) | 0.077×0.231 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.231×0.231 mm [109PPI] | |

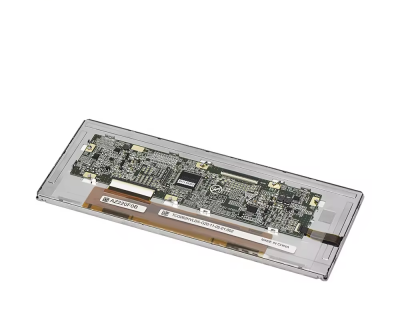

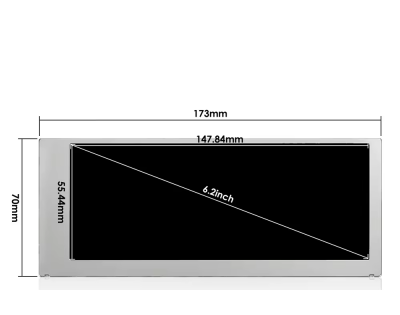

Mechanical Size : | Active Area | 147.84(W)×55.44(H) mm | Overall Dim. | 173(W)×70(H) mm |
Bezel Opening | 150.8(W)×58.5(H) mm | Overall Depth | 7.75±0.8 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 8:3 | Orientation | Landscape type | |
Touch Screen : | Touch Points | - | TP Signal | - |
TP Controller | - | Touchscreen | 4-wire Resistive Touch | |
Other Detail : | Mass | 135g (Typ.) | Surface | Glare (Haze 0%) |
3、Kyocera TCG062HVLDB-G20 Optical Details
Basic Information : | Luminance(cd/m²) | 240 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 15/20 (Typ.)(Tr/Td) ms | |
Color Performance : | White Coordinate | Wx:0.330; Wy:0.350 | Display Colors | 262K (6-bit) |
Color Temperature | 5598K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 47% | sRGB | 64% coverage |
Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG062HVLDB-G20 Electronics Details
Reverse Scan : | 60Hz |
Refresh Rate : | Embedded T-CON |
5、Kyocera TCG062HVLDB-G20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 130/170mA (Typ./Max.) | ||||||
Signal Type : | Parallel RGB (1 ch, 6-bit) | Consumption | - | |||||||
Logic Voltage : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
IRISO | IMSA-9681S-40A-GF | 0.5 mm | 40pins | 1 pcs | ||||||
6、Kyocera TCG062HVLDB-G20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 40K(Typ.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Lamp Electrical : | Voltage Input | 3.0/5.5V (Min./Max.) | Current Input | - | ||
Backlight Driver : | With LED Driver | |||||
