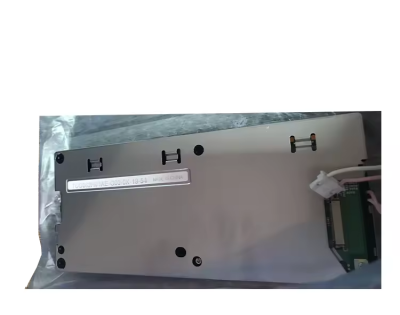

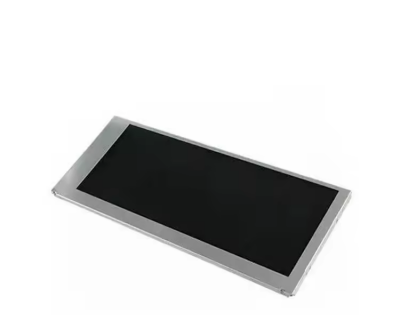

1、Kyocera TCG062HVLQAVNN-GN20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG062HVLQAVNN-GN20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 6.2" | |||
Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight， With LED Driver，Bar Display，180°Reverse | |||
2、Kyocera TCG062HVLQAVNN-GN20 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×240, HVGA | Dot Pitch (W×H) | 0.077×0.231 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.231×0.231 mm [109PPI] | |
Mechanical Size : | Active Area | 147.84(W)×55.44(H) mm | Overall Dim. | 173(W)×70(H) mm |
Bezel Opening | 149.8(H) × 57.4(V) | Overall Depth | 4.2/7.2 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 8:3 | Orientation | Landscape type | |
Other Detail : | Mass | 115g (Typ.) | Surface | - |
3、Kyocera TCG062HVLQAVNN-GN20 Optical Details
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥5) | Display Mode | AWV, Normally Black, Transmissive | |
Best View on | - | Response(ms) | 18/12 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.305; Wy:0.325 | Display Colors | 262K (6-bit) |
Color Temperature | 6974K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 70% coverage |
Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG062HVLQAVNN-GN20 Electronics Details
Reverse Scan : | 60Hz |
Reverse Scan : | Yes (180°) |
5、Kyocera TCG062HVLQAVNN-GN20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 80/105mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 6-bit) | Consumption | - | |||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
IRISO | MDF76GW-30S-1H | 1.0mm | 30pins | 1 pcs | ||||||
6、Kyocera TCG062HVLQAVNN-GN20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 40K(Typ.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Lamp Electrical : | Voltage Input | 3.0/5.5V (Min./Max.) | Current Input | 220/450mA (Min./Max.) | ||
Backlight Driver : | With LED Driver | |||||
