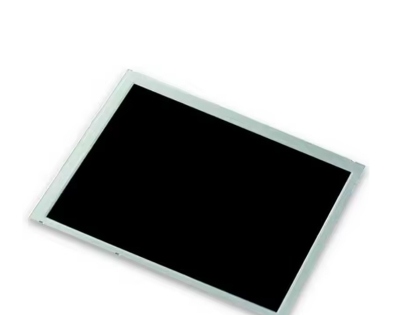

1、Kyocera TCG070WVLPAANN-AN00-EA Application Details
Basic Information : | Brand | Kyocera | Model | TCG070WVLPAANN-AN00-EA |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 7.0" | |||
Environment : | Storage Temp. | -25 ~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight， Life≥100K hours，180°Reverse，Matte | |||
2、Kyocera TCG062HVLQAVNN-GN20 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.1905×0.1905 mm (H×V) [133PPI] | |
Mechanical Size : | Active Area | 152.4×91.44 mm (H×V) | Bezel Area | 154.4×93.4 mm (H×V) |
Outline Dim. | 165×104.4 mm (H×V) | Outline Depth | 8.2/8.5 (Typ./Max.) mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 15:9 (H:V) | Orientation | Landscape type | |
Holes & Brackets : | Without | |||
Other Detail : | Mass | 195g (Typ.) | Surface | Antiglare |
3、Kyocera TCG062HVLQAVNN-GN20 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | 12 o'clock | Response(ms) | 5/25 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.290; Wy:0.305 | Display Colors | 262K (6-bit) |
Color Temperature | 8405K | White Uniformity | 1.43 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 68% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG062HVLQAVNN-GN20 Electronics Details
Time Controller (T-CON) : | Embedded T-CON |
Reverse Scan : | Yes (180°) |
5、Kyocera TCG062HVLQAVNN-GN20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 180/235mA (Typ./Max.) | |||||||
Signal Type : | Parallel RGB (1 ch, 6-bit) | Consumption | 0.594W (Typ.) | ||||||||
Logic Voltage | 0≤VIL≤0.8V; 2.0V≤VIH≤VDD | ||||||||||
Interface Features : | Position | - | Type | Connector | |||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||||
IRISO | IMSA-9681S-40A-GF | 0.5mm | 40pins | 1 pcs | |||||||
6、Kyocera TCG062HVLQAVNN-GN20 Backlight Details
Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 100K(Typ.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Lamp Electrical : | Voltage Input | 12.0/14.1V (Typ./Max.) | Current Input | 60mA (Typ.) | ||
Backlight Driver : | No | |||||
7、Kyocera TCG070WVLPAANN-AN00-EA Carton Details
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
Carton | 30 | 495×410×331 | N/A |
