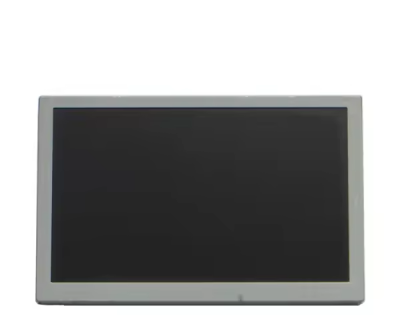

  • Kyocera 7.0 Inch TCG070WVLPAANN-AN50 800*480 TFT LCD Display Screen
  • Model:TCG070WVLPAANN-AN50
  • Brand:Kyocera
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:700 cd/m² (Typ.)
  • Perspective:80/80/60/80 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1、Kyocera TCG070WVLPAANN-AN50  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG070WVLPAANN-AN50

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    7.0"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~~ 70 °C

    RoHS

    RoHS



    Typical Features :

    Hight Brightness,WLED Backlight, Life≥70K hours,180°Reverse,Matte


    2、Kyocera TCG070WVLPAANN-AN50 Mechanical Details

    Pixel Features :

    Resolution

    800(RGB)×480 [WVGA]

    Dot Pitch

    0.0635×0.1905 mm (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.1905×0.1905 mm (H×V)  [133PPI]

    Mechanical Size :

    Active Area

    152.4×91.44 mm (H×V)

    Bezel Area

    154.4×93.4 mm (H×V)

    Outline Dim.

    165×104.4 mm (H×V)

    Outline Depth

    8.2/8.5 (Typ./Max.) mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    15:9 (H:V)

    Orientation

    Landscape type

    Holes & Brackets :

    Without

    Other Detail :

    Mass

    195g (Typ.)

    Surface

    Antiglare



    3、Kyocera TCG070WVLPAANN-AN50 Optical Details

    Basic Information :

    Luminance(cd/m²)

    700 (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Viewing Angle

    80/80/60/80 (Typ.)(CR≥10)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    12 o'clock

    Response(ms)

    5/25 (Typ.)(Tr/Td) (ms)

    Color Performance :

    White Coordinate

    Wx:0.290; Wy:0.305

    Display Colors

    262K (6-bit)

    Color Temperature

    8405K

    White Uniformity

    1.43 (Max.)(5 points)

    1931 Color Gamut :

    NTSC Ratio

    49%

    sRGB

    68% coverage

    Adobe RGB

    51% coverage

    DCI-P3

    51% coverage

    Rec.2020

    36% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Dispaly Performance :

    Outdoor Visibility

    Sunlight Readable

    Transmissivity

    -


    4、KyoceraTCG070WVLPAANN-AN50 Electronics Details

    Time Controller (T-CON) :

    Embedded T-CON

    Reverse Scan :

    Yes (180°)


    5、Kyocera TCG070WVLPAANN-AN50  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    180/235mA (Typ./Max.)

    Signal Type :

    Parallel RGB (1 ch, 6-bit)

    Consumption

    0.594W (Typ.)

    Logic Voltage

    0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    IRISO

    IMSA-9681S-40A-GF

    0.5mm

    40pins

    1 pcs














    6、Kyocera TCG070WVLPAANN-AN50  Backlight Details

    Backlight Features:

    Shape

    2 strings

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    2 strings

    Life Time

    70K(Typ.) (Hours)

    Interface Features :

    Position

    -


    Type

    Included in signal interface

    Lamp Electrical :

    Voltage Input

    18.0/21.2V (Typ./Max.)

    Current Input

    60mA (Typ.)

    Backlight Driver :

    No
