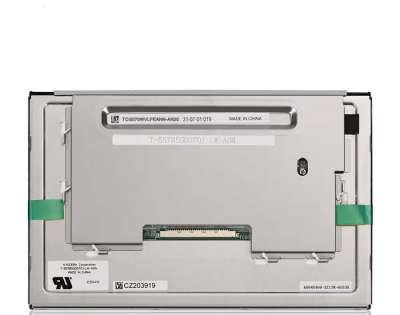

1、Kyocera TCG070WVLPEANN-AN20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG070WVLPEANN-AN20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 7.0" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | |||
Typical Features : | WLED Backlight， Life≥70K hours，With LED Driver，180°Reverse，6/8 bit，Matte | |||
2、Kyocera TCG070WVLPEANN-AN20 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.1905×0.1905 mm (H×V) [133PPI] | |

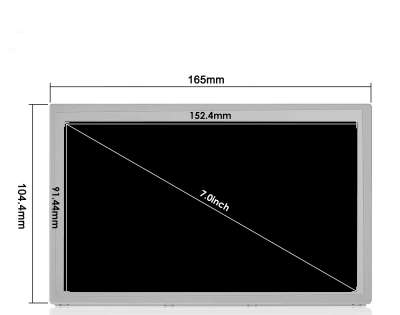

Mechanical Size : | Active Area | 152.4×91.44 mm (H×V) | Bezel Area | 154.4×93.4 mm (H×V) |
Outline Dim. | 165×104.4 mm (H×V) | Outline Depth | 8.6±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 15:9 (H:V) | Orientation | Landscape type | |
Holes & Brackets : | Without | |||
Other Detail : | Mass | 205g (Typ.) | Surface | Antiglare |
3、Kyocera TCG070WVLPEANN-AN20 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | 12 o'clock | Response(ms) | 5/25 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.290; Wy:0.305 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 8405K | White Uniformity | ||
1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 68% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG070WVLPEANN-AN20 Electronics Details
Frame Rate : | 60Hz |
Power Consumption : | 2.64W (Typ.) |
Reverse Scan : | Yes (180°) |
5、Kyocera TCG070WVLPEANN-AN20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/260mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 6/8-bit) | Consumption | 0.66W (Typ.) | |||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
HRS | MDF76GW-30S-1H | 1.0mm | 30pins | 1 pcs | ||||||
6、Kyocera TCG070WVLPEANN-AN20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||||
Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | ||||||
Interface Features : | Position | - | Type | - | |||||||
Lamp Electrical : | Voltage Input | 12.0±1.2V | Current Input | 165/280mA (Typ./Max.) | Power Consumption | 1.98W (Typ.) | |||||
