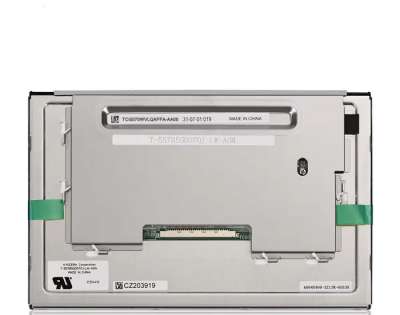

  • Kyocera 7-Inch TFT Display TCG070WVLQAPFA-AA00 800*480 WLED with Touch LCD Panel
  • Kyocera 7-Inch TFT Display TCG070WVLQAPFA-AA00 800*480 WLED with Touch LCD Panel
  • Model:TCG070WVLQAPFA-AA00
  • Brand:Kyocera
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:280 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG070WVLQAPFA-AA00  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG070WVLQAPFA-AA00

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    7.0"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~~ 70 °C

    RoHS

    RoHS



    Typical Features :

    With TouchWLED Backlight Life100K hours 180°Reverse Matte


    2Kyocera TCG070WVLQAPFA-AA00  Mechanical Details

    Pixel Features :

    Resolution

    800(RGB)×480 [WVGA]

    Dot Pitch

    0.0635×0.1905 mm (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.1905×0.1905 mm (H×V)  [133PPI]

    Mechanical Size :

    Active Area

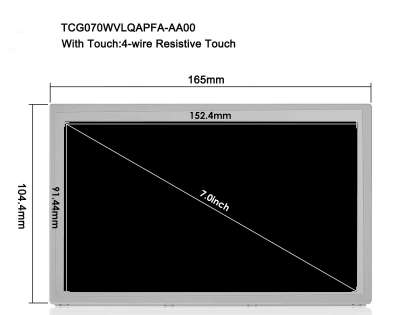

    152.4×91.44 mm (H×V)

    Bezel Area

    154.4×93.4 mm (H×V)

    Outline Dim.

    165×104.4 mm (H×V)

    Outline Depth

    10.0/10.5 (Typ./Max.)

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    15:9 (H:V)

    Orientation

    Landscape type

    Touch Panel :

    Touch Points

    -

    Touch Panel

    4-wire Resistive Touch

    TP Controller

    Without controller

    Touch Signal

    -

    Holes & Brackets :

    Without

    Other Detail :

    Mass

    255g (Typ.)

    Surface

    Antiglare, Hard coating (2H)



    3Kyocera TCG070WVLQAPFA-AA00  Optical Details

    Basic Information :

    Luminance(cd/m²)

    280 (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    85/85/85/85 (Typ.)(CR10)

    Display Mode

    AWV, Normally Black, Transmissive

    Best View on

    Symmetry

    Response(ms)

    12/18 (Typ.)(Tr/Td) ms

    Color Performance :

    White Coordinate


    Wx:0.300; Wy:0.320

    Display Colors

    262K (6-bit)

    Color Temperature

    7351K

    White Uniformity

    1.43 (Max.)(5 points)

    1931 Color Gamut :

    NTSC Ratio

    51%

    sRGB

    72% coverage

    Adobe RGB

    53% coverage

    DCI-P3

    53% coverage

    Rec.2020

    38% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Kyocera TCG070WVLQAPFA-AA00  Electronics Details

    Frame Rate :

    60Hz

    Time Controller (T-CON) :

    Embedded T-CON

    Reverse Scan :

    Yes (180°)


    5Kyocera TCG070WVLQAPFA-AA00 Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    160/210mA (Typ./Max.)

    Signal Type :

    Parallel RGB (1 ch, 6-bit)

    Consumption

    0.53W (Typ.)

    Logic Voltage :

    0VIL0.3VDD; 0.7VDDVIHVDD

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    IRISO

    IMSA-9681S-40A-GF

    0.5mm

    40pins

    1 pcs













    6Kyocera TCG070WVLQAPFA-AA00  Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    2 strings

    Life Time

    100K(Typ.) (Hours)

    Lamp Electrical :

    Input Voltage


    18.0/21.2V (Typ./Max.)

    Input Current

    60mA (Typ./Max.)

    Interface Features :

    Position



    -


     Type

    Included   in signal interface

    Backlight Driver :

    No
