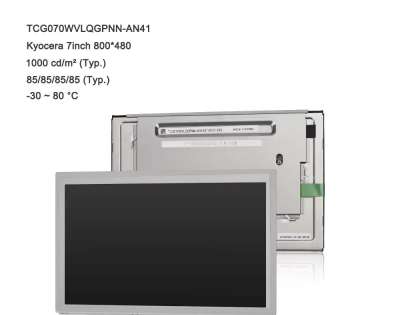

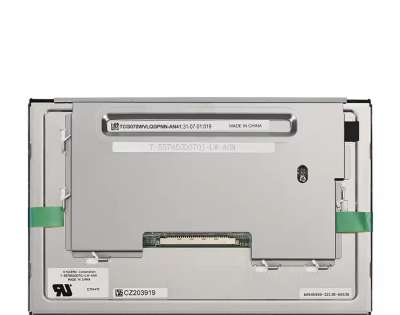

  • TCG070WVLQGPNN-AN41Kyocera 7 inch 800x480 TFT LCD Panel IPS Display For Outdoor
  • TCG070WVLQGPNN-AN41Kyocera 7 inch 800x480 TFT LCD Panel IPS Display For Outdoor
  • Model:TCG070WVLQGPNN-AN41
  • Brand:Kyocera
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:1000 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 80 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1、Kyocera TCG070WVLQGPNN-AN41  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG070WVLQGPNN-AN41

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial,Outdoor High   Brightness,Automotive Display

    Screen Size

    7.0"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -30 ~~ 80 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    Wide Temperature,Ultra High Brightness,WLED Backlight,Life≥70K hours,With LED Driver,180°Reverse,6/8bit, Matte


    2、Kyocera TCG070WVLQGPNN-AN41  Mechanical Details

    Pixel Features :

    Resolution

    800(RGB)×480 [WVGA]

    Dot Pitch

    0.0635×0.1905 mm (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.1905×0.1905 mm (H×V)  [133PPI]

    Mechanical Size :

    Active Area

    152.4×91.44 mm (H×V)

    Bezel Area

    154.4×93.4 mm (H×V)

    Outline Dim.

    169.8×109.7 mm (H×V)

    Outline Depth

    9.7±0.5 mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    15:9 (H:V)

    Orientation

    Landscape type

    Holes & Brackets :

    Side mounting holes (4-M2) on left, right   bezel

    Other Detail :

    Mass

    230g

    Surface

    Antiglare



    3、Kyocera TCG070WVLQGPNN-AN41  Optical Details

    Basic Information :

    Luminance(cd/m²)

    1000 (Typ.)

    Contrast Ratio

    750:1 (Typ.) (Transmissive)

    Viewing Angle

    85/85/85/85 (Typ.)(CR≥10)

    Display Mode

    AWV, Normally Black, Transmissive

    Best View on

    Symmetry

    Response(ms)

    18/12 (Typ.)(Tr/Td)

    Color Performance :

    White Coordinate


    Wx:0.310; Wy:0.325

    Display Colors

    262K/16.2M (6-bit / 6-bit + FRC)

    Color Temperature

    6685K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    51%

    sRGB

    71% coverage

    Adobe RGB

    53% coverage

    DCI-P3

    53% coverage

    Rec.2020

    38% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Dispaly Performance :

    Outdoor Visibility

    Sunlight Readable

    Transmittance

    -


    4、Kyocera TCG070WVLQGPNN-AN41  Electronics Details

    Frame Rate :

    60Hz

    Reverse Scan :

    Yes (180°)

    Total Consumption :

    5.22W (Typ.)


    5、Kyocera TCG070WVLQGPNN-AN41  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    200/260mA (Typ./Max.)

    Signal Type :

    LVDS (1 ch, 6/8-bit)

    Consumption

    0.66W (Typ.)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    HRS

    MDF76GW-30S-1H(55)

    1.0mm

    30pins

    1 pcs













    6、Kyocera TCG070WVLQGPNN-AN41  Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    -

    Life Time

    70K(Typ.) (Hours)

    Interface Features :

    Position



    -

    Type

     Included   in signal interface

    Backlight Driver :

    With LED Driver

    Driver Electrical :


    Voltage Supply

    12.0±1.2V

    Current Supply

    380/550mA (Typ./Max.)

    Consumption

    4.56W (Typ.)
