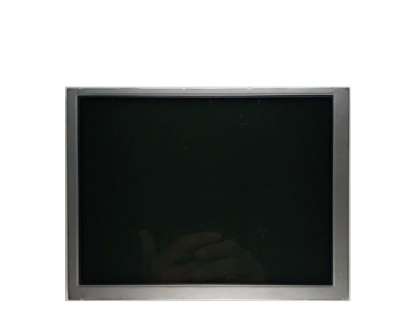

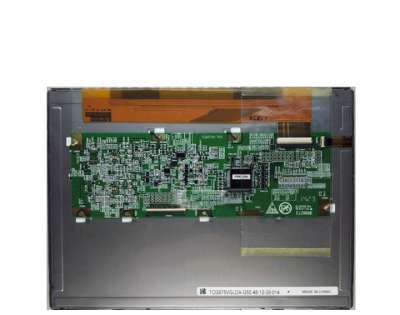

  • 7 5 inch 640*480 TCG075VGLDA-G50 LCD Screen display FOR KYOCERA
  • 7 5 inch 640*480 TCG075VGLDA-G50 LCD Screen display FOR KYOCERA
  • Model:TCG075VGLDA-G50
  • Brand:Kyocera
  • Size:7.5inch
  • Resolution:640×480
  • Brightness:400 cd/m² (Typ.)
  • Perspective:80/80/80/80 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG075VGLDA-G50   Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG075VGLDA-G50

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    7.5"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~~ 70 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    WLED BacklightLife50K hoursU/D,L/R ReverseGlossy


    2Kyocera TCG075VGLDA-G50   Mechanical Details

    Pixel Features :

    Resolution

    640(RGB)×480, VGA

    Dot Pitch

    0.079×0.237 (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.237×0.237 (H×V)  [107PPI]

    Mechanical Size :

    Active Area (mm)

    151.68(H) × 113.76(V)

    Bezel Area (mm)

    156.3(H) × 118.4(V)

    Outline Dim.

    (H×V)

    173×133 mm

    Outline Depth (mm)

     6.35±0.5   mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (H:V)

    Orientation

    Landscape type

    Other Detail :

    Mass

    205g (Typ.)

    Surface

    Glare (Haze 0%)



    3Kyocera TCG075VGLDA-G50  Optical Details

    Basic Information :

    Luminance(cd/m²)

    400 (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    80/80/80/80 (Typ.)(CR5)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    -

    Response(ms)

    15/20   (Typ.)(Tr/Td)

    Color Performance :

    White Coordinate

     Wx:0.320;   Wy:0.340

    Display Colors

    262K (6-bit)

    Color Temperature

    6066K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    52%

    sRGB

    71% coverage

    Adobe RGB

    55% coverage

    DCI-P3

    54% coverage

    Rec.2020

    39% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4Kyocera TCG075VGLDA-G50  Electronics Details

    Reverse Scan :

    Yes (U/D, L/R)


    5Kyocera TCG075VGLDA-G50  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    160/210mA (Typ./Max.)

    Signal Type :

    Parallel   RGB (1 ch, 6-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    IRISO

    IMSA-9681S-40A-GF

    0.5mm

    40pins

    1 pcs













    6Kyocera TCG075VGLDA-G50  Backlight Details

    Backlight Features:

    Shape

    4 strings

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    4 strings

    Life Time

    50K(Typ.) (Hours)

    WLED Electrical :

    Input Voltage

    27.5/29.3V (Typ./Max.)

    Input Current

    13.5mA (Typ.)

    Interface Features :

    Position



    -

    Type

    Included   in signal interface

    Backlight Driver :

    No
