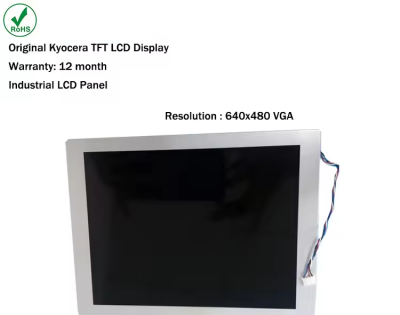

  • TCG075VGLEAANN-GN00 Kyocera 7.5 inch Kyocera 640x480 VGA lcd screen display
  • Model:TCG075VGLEAANN-GN00
  • Brand:Kyocera
  • Size:7.5inch
  • Resolution:640*480
  • Brightness:400 cd/m² (Typ.)
  • Perspective:80/80/80/80 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1、Kyocera TCG075VGLEAANN-GN00   Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG075VGLEAANN-GN00

    Type

    LCM     a-Si TFT-LCD

    Used For

    Industrial

    Screen Size

    7.5"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~~ 70 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    WLED Backlight,Life≥50K hours,U/D,L/R Reverse,Matte


    2、Kyocera TCG075VGLEAANN-GN00  Mechanical Details

    Pixel Features :

    Resolution

    640(RGB)×480, VGA

    Dot Pitch

    0.079×0.237 (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.237×0.237 (H×V)  [107PPI]

    Mechanical Size :

    Active Area (mm)

    151.68(H) × 113.76(V)

    Bezel Area (mm)

    156.3(H) × 118.4(V)

    Outline Dim.

    (H×V)

    184×139.8 mm

    Outline Depth

    12.7±0.5 mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (H:V)

    Orientation

    Landscape type

    Holes & Brackets :

    Rear mounting holes (4-Φ2.5)

    Other Detail :

    Mass

    340g (Typ.)

    Surface

    Glare (Haze 0%)



    3、Kyocera TCG075VGLEAANN-GN00   Optical Details

    Basic Information :

    Luminance(cd/m²)

    400 (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    80/80/80/80 (Typ.)(CR≥5)

    Display Mode

    TN, Normally White, Transmissive

    Best View on

    -

    Response(ms)

    15/20   (Typ.)(Tr/Td)

    Color Performance :

    White Coordinate

    Wx:0.320;   Wy:0.340

    Display Colors

    262K (6-bit)

    Color Temperature

    6022K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    49%

    sRGB

    67% coverage

    Adobe RGB

    51% coverage

    DCI-P3

    50% coverage

    Rec.2020

    36% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    4、Kyocera TCG075VGLEAANN-GN00   Electronics Details

    Reverse Scan :

    Yes (U/D, L/R)

    Time Controller (T-CON) :

    Embedded T-CON


    5、Kyocera TCG075VGLEAANN-GN00   Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    160/210mA (Typ./Max.)

    Signal Type :

    Parallel   RGB (1 ch, 6-bit)

    Logic Voltage for Signals :

    0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment


     IRISO

    IMSA-9632S-33Z02-GF1

    0.5mm

    33pins

    1 pcs

    DRGB-33P1C6B-020A














    6、Kyocera TCG075VGLEAANN-GN00   Backlight Details

    Backlight Features:

    Shape

    2strings

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    2strings

    Life Time

    50K(Typ.) (Hours)

    WLED Electrical :

    Input Voltage

    15.0/17.6V (Typ./Max.)

    Input Current

    60mA (Typ.)

    Interface Features :

    Position



    -

     Type

    Connector

    Backlight Driver :

    No

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

    JST

    PHR-4

    2.0 mm

    4pins

    1 pcs

    BLE-4PINS-AACC
