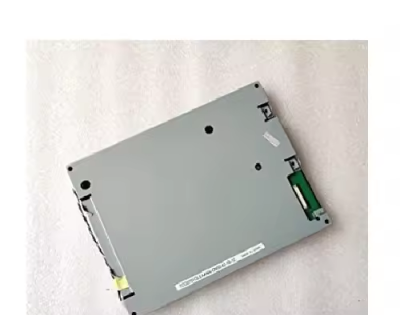

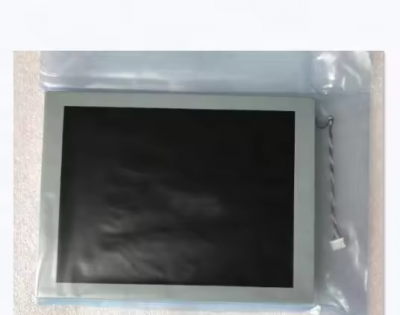

1、Kyocera TCG075VGLEAAFA-GA00 Application Details
Basic Information : | Brand | Kyocera | Model | TCG075VGLEAAFA-GA00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 7.5" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | With Touch，WLED Backlight，Life≥50K hours，U/D,L/R Reverse，Glossy | |||
2、Kyocera TCG075VGLEAAFA-GA00 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch | 0.079×0.237 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.237×0.237 (H×V) [107PPI] | |
Mechanical Size : | Active Area (mm) | 151.68(H) × 113.76(V) | Bezel Area (mm) | 156.3(H) × 118.4(V) |
Outline Dim. (H×V) | 184×139.8 mm | Outline Depth | 14.45±0.8 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (H:V) | Orientation | Landscape type | |
Touch Screen : | Controller & Signal type | Touch Points | Supported OS System | TP Technology |
Without controller | - | - | 4-wire Resistive Touch | |
Holes & Brackets : | Rear mounting holes (4-Φ2.5) | |||
Other Detail : | Mass | 340g (Typ.) | Surface | Glare (Haze 0%), Hard coating (2H) |
3、Kyocera TCG075VGLEAAFA-GA00 Optical Details
Basic Information : | Luminance(cd/m²) | 320 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | - | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.320; Wy:0.340 | Display Colors | 262K (6-bit) |
Color Temperature | 6022K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 67% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG075VGLEAAFA-GA00 Electronics Details
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG075VGLEAAFA-GA00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 160/210mA (Typ./Max.) | ||||||||
Signal Type : | Parallel RGB (1 ch, 6-bit) | Logic Voltage for Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||||
IRISO | IMSA-9632S-33Z02-GF1 | 0.5mm | 33pins | 1 pcs | DRGB-33P1C6B-020A | |||||||
6、Kyocera TCG075VGLEAAFA-GA00 Backlight Details
Backlight Features: | Shape | 2strings | Type | WLED | Position | Edge light type | ||||||||
Replacement | - | Quantity | 2strings | Life Time | 50K(Typ.) (Hours) | |||||||||
WLED Electrical : | Input Voltage | 15.0/17.6V (Typ./Max.) | Input Current | 60mA (Typ.) | ||||||||||
Interface Features : | Position | - | Type | Connector | ||||||||||
Backlight Driver : | No | |||||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||||||
JST | PHR-4 | 2.0 mm | 4pins | 1 pcs | BLE-4PINS-AACC | |||||||||
