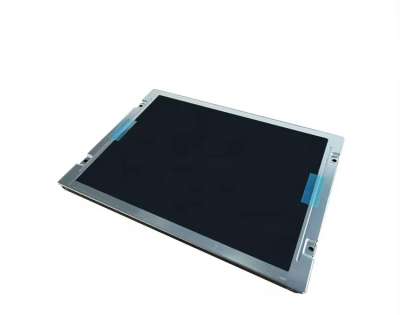

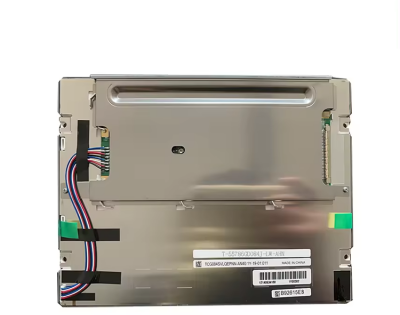

1、Kyocera TCG084SVLPAAFA-AA20 Application Details
Basic Information : | Brand | Kyocera | Model | TCG084SVLPAAFA-AA20 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 8.4" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | With Touch，WLED Backlight，Life≥100K hours，With LED Driver，Matte | |||
2、Kyocera TCG084SVLPAAFA-AA20 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600 [SVGA] | Dot Pitch | 0.071×0.213 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.213×0.213 mm (H×V) [119PPI] | |
Mechanical Size : | Active Area | 170.4×127.8 mm (H×V) | Bezel Area | 174.4×131.8 mm (H×V) |
Outline Dim. | 199.5×147.4 mm (H×V) | Outline Depth | 10.8±0.75 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (H:V) | Orientation | Landscape type | |
Touchscreen : | TP Controller | Without controller | Control Signal | - |
Touch Points | 1 point | TP Technology | 4-wire Resistive Touch | |
Holes & Brackets : | Face mounting holes (8-Φ3.4) on left, right bezel | |||
Other Detail : | Mass | 400g (Typ.) | Surface | Antiglare, Hard coating (2H) |
3、Kyocera TCG084SVLPAAFA-AA20 Optical Details
Basic Information : | Luminance(cd/m²) | 320 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/60 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
Best View on | 6 o'clock | Response(ms) | 8/22 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.300; Wy:0.315 | Display Colors | 16.2M (6-bit + FRC) |
Color Temperature | 7435K | White Uniformity | 1.43 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 51% | sRGB | 71% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG084SVLPAAFA-AA20 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、Kyocera TCG084SVLPAAFA-AA20 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 250/310mA (Typ./Max.) | ||||||
Signal Type : | LVDS (1 ch, 6/8-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
JAE | FI-X30SSLA-HF | 1.0mm | 30pins | 1 pcs | LVDS-30P1C8B-272A | |||||
6、Kyocera TCG084SVLPAAFA-AA20 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | ||||||
Replacement | - | Quantity | - | Life Time | 100K(Typ.) (Hours) | |||||||
Interface Features : | Position
| - | Type | Included in signal interface | ||||||||
Backlight Driver : | With LED Driver | |||||||||||
Driver Electrical :: | Voltage Input | 12.0±1.2V | Current Input | 250/400mA (Typ./Max.) | ||||||||
