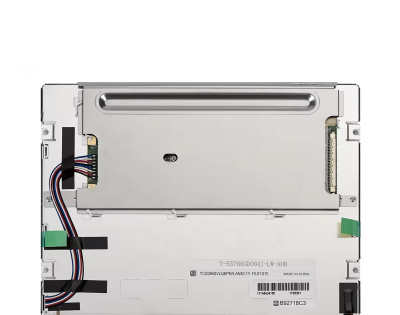

  • Industrial 8.4 inch Kyocera TCG084SVLQEPNN-AN40 800x600 LVDS High brightness
  • Industrial 8.4 inch Kyocera TCG084SVLQEPNN-AN40 800x600 LVDS High brightness
  • Model:TCG084SVLQEPNN-AN40
  • Brand:Kyocera
  • Size:8.4inch
  • Resolution:800×600
  • Brightness:1200 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 80 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG084SVLQEPNN-AN40  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG084SVLQEPNN-AN40

    Type

    LCM     a-Si TFT-LCD

    Used For

    IndustrialOutdoor High   Brightness

    Screen Size

    8.4"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -30 ~ 80 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    Wide TemperatureUltra Hight BrightnessWLED BacklightLife70K hoursWith LED DriverMatte


    2Kyocera TCG084SVLQEPNN-AN40  Mechanical Details

    Pixel Features :

    Resolution

    800(RGB)×600 [SVGA]

    Dot Pitch

    0.071×0.213 mm (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.213×0.213 mm (H×V)  [119PPI]

    Mechanical Size :

    Active Area

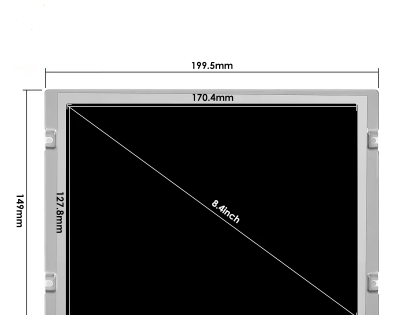

    170.4×127.8 mm (H×V)

    Bezel Area (mm)

    173.9(H) × 131.9(V)

    Outline Dim.

    199.5×147.4 mm (H×V)

    Outline Depth (mm)

    11.5±0.5

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (H:V)

    Orientation

    Landscape type

    Holes & Brackets :

    Face mounting holes (4-Φ3.4), Side   mounting holes (4-M2) on left, right bezel

    Other Detail :

    Mass

    365g (Typ.)

    Surface

    Antiglare





    3Kyocera TCG084SVLQEPNN-AN40  Optical Details

    Basic Information :

    Luminance(cd/m²)

    1200 (Typ.)

    Contrast Ratio

    750:1 (Typ.) (Transmissive)

    Viewing Angle

    85/85/85/85 (Typ.)(CR10)

    Display Mode

    AWV, Normally Black, Transmissive

    Best View on

    Symmetry

    Response(ms)

    18/12 (Typ.)(Tr/Td)

    Color Performance :

    White Coordinate


    X:0.320; Y:0.345

    Display Colors

    16.2M (6-bit + FRC)

    Color Temperature

    6043K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    51%

    sRGB

    71% coverage

    Adobe RGB

    53% coverage

    DCI-P3

    53% coverage

    Rec.2020

    38% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Performance :

    3D Tech

    Sunlight Visibility

    Reflectance

    -

    Sunlight Readable

    -


    4Kyocera TCG084SVLQEPNN-AN40 Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    No


    5Kyocera TCG084SVLQEPNN-AN40 Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    270/350mA   (Typ./Max.)

    Signal Type :

    LVDS   (1 ch, 8-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    JAE

    FI-X30SSLA-HF

    1.0mm

    30pins

    1 pcs

    LVDS-30P1C8B-272A












    6Kyocera TCG084SVLQEPNN-AN40  Backlight Details

    Backlight Features:

    Shape

    4strings

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    6S4P

    Life Time

    70K(Typ.) (Hours)

    Interface Features :

    Position


    -Type


    Included in signal interface

    Backlight Driver :

    With LED Driver

    Driver Electrical :

    Voltage Input


    12.0±1.2VCurrent Input


    740/1050mA (Typ./Max.)
