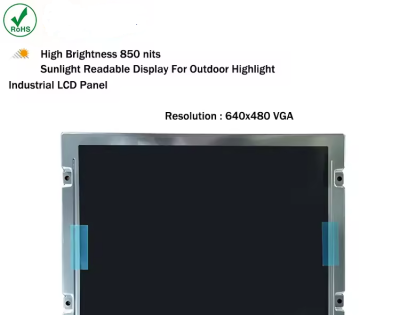

  • TCG084VGLAAANN-AN50 8.4 inch 40 pins tft lcd screen display 640*480 LCM lcd

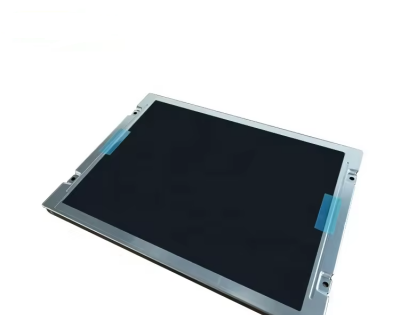

  • TCG084VGLAAANN-AN50 8.4 inch 40 pins tft lcd screen display 640*480 LCM lcd
  • Model:TCG084VGLAAANN-AN50
  • Brand:Kyocera
  • Size:8.4inch
  • Resolution:640*480
  • Brightness:850 cd/m² (Typ.)
  • Perspective:65/65/60/65 (Typ.)
  • Interface:RGB
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Kyocera TCG084VGLAAANN-AN50  Application Details

    Basic Information :

    Brand

    Kyocera

    Model

    TCG084VGLAAANN-AN50

    Type

    LCM     a-Si TFT-LCD

    Used For

    IndustrialOutdoor High   Brightness

    Screen Size

    8.4"



    Environment :

    Storage Temp.

    -30 ~ 80 °C

    Operating Temp.

    -20 ~ 70 °C

    RoHS

    RoHS

    Vibration Rating

    -

    Typical Features :

    Hight BrightnessWLED BacklightLife70K hoursU/D,L/R ReverseMatte


    2Kyocera TCG084VGLAAANN-AN50  Mechanical Details

    Pixel Features :

    Resolution

    640(RGB)×480 [VGA]

    Dot Pitch

    0.089×0.267mm (H×V)

    Pixel Format

    RGB Vertical Stripe

    Pixel Pitch (W×H)

    0.267×0.267  [95PPI]

    Mechanical Size :

    Active Area (mm)

    170.88(H) × 128.16(V)

    Bezel Area (mm)

    174.4(W)×131.8(H) mm

    Outline Dim.

    199.5×147.4 mm (H×V)

    Outline Depth (mm)

    9.0 (Typ.) mm

    Outline Features :

    Form Style

    Flat Rectangle

    Outline Shape


    Aspect Ratio (W:H)

    4:3 (H:V)

    Orientation

    Landscape type

    Holes & Brackets :

    Face mounting holes

    Other Detail :

    Mass

    320g (Typ.)

    Surface

    Antiglare





    3Kyocera TCG084VGLAAANN-AN50  Optical Details

    Basic Information :

    Luminance(cd/m²)

    850 (Typ.)

    Contrast Ratio

    500:1 (Typ.) (Transmissive)

    Viewing Angle

    65/65/60/65 (Typ.)(CR10)

    Display Mode

    TN, Normally White

    Best View on

    6 o'clock

    Response(ms)

    10/20 (Typ.)(Tr/Td)

    Color Performance :

    White Coordinate


    X:0.305; Y:0.315

    Display Colors

    262K (6-bit)

    Color Temperature

    7106K

    White Uniformity

    -

    1931 Color Gamut :

    NTSC Ratio

    49%

    sRGB

    69% coverage

    Adobe RGB

    51% coverage

    DCI-P3

    51% coverage

    Rec.2020

    37% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    White Variation :

    1.43 (Max.)(5 points)

    Performance :

    3D Tech

    -

    Sunlight Visibility

    Sunlight Readable

    Reflectance

    -




    4Kyocera TCG084VGLAAANN-AN50  Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    Yes (U/D, L/R)

    Time Controller (T-CON) :

    Embedded T-CON


    5Kyocera TCG084VGLAAANN-AN50  Interface Details

    Signal Electrical :

    Voltage Supply

    3.3V (Typ.)

    Current Supply

    160/240mA   (Typ./Max.)

    Voltage for Display Signals :

    0VIL0.8VDD; 2.0VDDVIHVDD

    Signal Type :

    Parallel RGB (1 ch, 6-bit)

    Interface Features :

    Position

    -

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    Kyocera Elco

    04-6240-040-023-846+

    0.5mm

    40pins

    1 pcs













    6Kyocera TCG084VGLAAANN-AN50  Backlight Details

    Backlight Features:

    Shape

    -

    Type

    WLED

    Position

    Edge light type

    Replacement

    -

    Quantity

    3 strings

    Life Time

    70K(Typ.) (Hours)

    Driver Electrical :

    Voltage Input


    18.4/20.4V (Typ./Max.)


    Current Input


     60mA   (Typ.)

    Interface Features :

    Position

    -

    Backlight Driver

    No

    Type

    Included in signal interface
