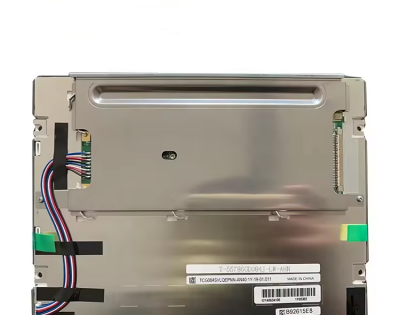

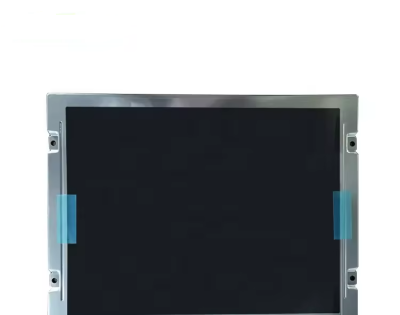

1、Kyocera TCG084VGLAAAFA-AA50 Application Details
Basic Information : | Brand | Kyocera | Model | TCG084VGLAAAFA-AA50 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 8.4" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | With Touch，Hight Brightness，WLED Backlight，Life≥100K hours，U/D,L/R Reverse，Matte | |||
2、Kyocera TCG084VGLAAAFA-AA50 Mechanical Details
Pixel Features : | Resolution | 640(RGB)×480 [VGA] | Dot Pitch | 0.089×0.267mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.267×0.267 [95PPI] | |
Mechanical Size : | Active Area (mm) | 170.88(H) × 128.16(V) | Bezel Area (mm) | 174.4(W)×131.8(H) mm |
Outline Dim. | 199.5×147.4 mm (H×V) | Outline Depth (mm) | 10.8/11.55 (Typ./Max.) mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 4:3 (H:V) | Orientation | Landscape type | |
Touchscreen : | Touch Points | 1 point | TP Controller & Signal | Without controller |
OS System | - | Touch Tech | 4-wire Resistive Touch | |
Holes & Brackets : | Face mounting holes (8-Φ3.4) on left, right bezel | |||
Other Detail : | Mass | 405g (Typ.) | Surface | Antiglare, Hard coating (2H) |
3、Kyocera TCG084VGLAAAFA-AA50 Optical Details
Basic Information : | Luminance(cd/m²) | 680 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 65/65/60/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White | |
Best View on | 6 o'clock | Response(ms) | 10/20 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | X:0.305; Y:0.315 | Display Colors | 262K (6-bit) |
Color Temperature | 7106K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 69% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
White Variation : | 1.43 (Max.)(5 points) | |||
4、Kyocera TCG084VGLAAAFA-AA50 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG084VGLAAAFA-AA50 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 160/240mA (Typ./Max.) | ||||||
Voltage for Display Signals : | 0≤VIL≤0.8VDD; 2.0VDD≤VIH≤VDD | |||||||||
Signal Type : | Parallel RGB (1 ch, 6-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
Kyocera Elco | 04-6240-040-023-846+ | 0.5mm | 40pins | 1 pcs | ||||||
6、Kyocera TCG084VGLAAAFA-AA50 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||
Replacement | - | Quantity | - | Life Time | 100K(Typ.) (Hours) | ||||
Driver Electrical : | Voltage Input | 18.4/20.4V (Typ./Max.) | Current Input | 60mA (Typ.) | |||||
Interface Features : | Position | - | Backlight Driver | No | |||||
Type | Included in signal interface | ||||||||
