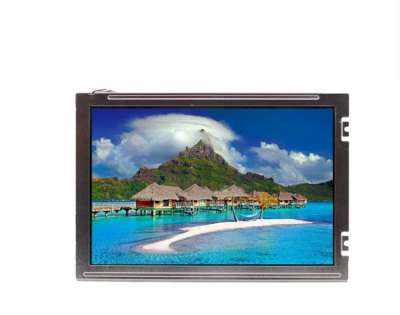

1、Kyocera TCG085WVLQDPNN-GN00 Application Details
Basic Information : | Brand | Kyocera | Model | TCG085WVLQDPNN-GN00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Healthcare | |
Screen Size | 8.5" | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - | |
Typical Features : | WLED Backlight，Life≥70K hours，U/D,L/R Reverse，Glossy | |||
2、Kyocera TCG085WVLQDPNN-GN00 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.077×0.231 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (mm) | 0.231×0.231 (H×V) [109PPI] | |
Mechanical Size : | Active Area (mm) | 184.8(H) × 110.88(V) | Bezel Area (mm) | 187.4(H) × 113.5(V) |
Outline Dim. (mm) | 210(H) × 134(V) | Outline Depth (mm) | 8.7/9.2 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio (W:H) | 15:9 (H:V) | Orientation | Landscape type | |
Holes & Brackets : | Face mounting holes (2 pcs) | |||
Other Detail : | Mass | 310g (Typ.) | Surface | Glare (Haze 0%) |
3、Kyocera TCG085WVLQDPNN-GN00 Optical Details
Basic Information : | Luminance(cd/m²) | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AWV, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 12/18 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.310; Wy:0.325 | Display Colors | 262K (6-bit) |
Color Temperature | 6685K | White Uniformity | ||
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 70% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Kyocera TCG085WVLQDPNN-GN00 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5、Kyocera TCG085WVLQDPNN-GN00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/260mA (Typ./Max.) | ||||||
Logic Voltage | 0≤VIL≤0.8V; 2.0V≤VIH≤VDD | |||||||||
Signal Type : | CMOS (1 ch, 6-bit) | |||||||||
Interface Features : | Position | - | Type | Connector | ||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
HRS | FH33-40S-0.5SH(10) | 0.5mm | 40pins | 1 pcs | ||||||
6、Kyocera TCG085WVLQDPNN-GN00 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type | |||||||
Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | ||||||||
Driver Electrical : | Voltage Input | 29.2/32.0V (Typ./Max.) | Current Input | 60mA (Typ.) | |||||||||
Interface Features : | Position | - | Backlight Driver | No | |||||||||
Type | Connector | ||||||||||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||||
JST | PHR-4 | 2.0 mm | 4 pins | 1 pcs | BLE-4PINS-AACC | ||||||||
