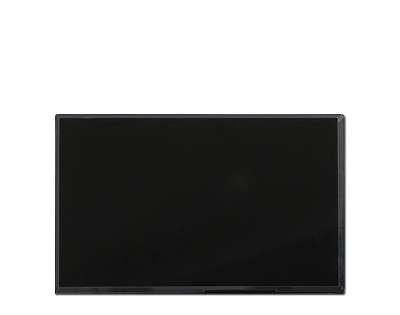

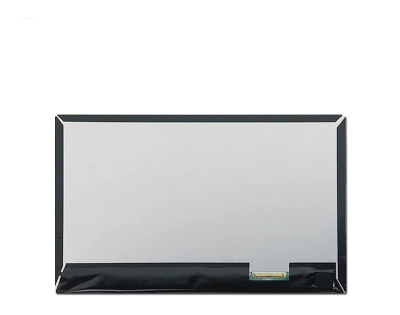

Model : | ZW-T101HIEWA-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 10.1-inch 1280 * 800 wide temperature and high brightness TFT LCD module, 1000nits, 40pins LVDS, -30~+85 ℃ |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application : | Industrial, Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 10.1" |
Resolution : | 1280×800 |
Aspect Ratio : | 16:10 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 216.96 (W) × 135.6 (H) mm |
Outline Dimension : | 229.46 (W) × 149.1 (H) mm |
Max. Depth : | 4.8 mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 1000nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | LVDS |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~ 85 °C |
Storage Temp. : | -30 ~ 85 °C |
