Model : | PC101IA53-B67 |
LCD Type | TFT |
Brand : | Xuhong |

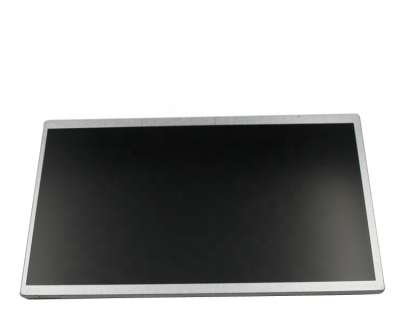

Keywords Desc. | 10.1-inch 1024*600 TFT LCD module 600nits 50pins TTL IPS full view compatible with G101STN01.2 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Digital Signage, Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 10.1" |
Resolution : | 1024×600 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 222.72 (W) × 125.28 (H) mm |
Outline Dimension : | 235 (W) × 143 (H) mm |
Max. Depth : | 5.0mm |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 600nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 85/85/85/85(L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.2M |
Interface： | TTL |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -20 ~ 70 °C |
