  • PC101IA-01G 10.1-inch 1280 * 800 TFT LCD module 400nits EK79202, 40pins LVDS
  • Model:PC101IA-01G
  • Brand:Xuhong
  • Size:10.1inch
  • Resolution:1280*800
  • Brightness:400cd/m2
  • Perspective:85/85/85/85
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Model :

    PC101IA-01G

    LCD Type:

    TFT

    Brand :

    Xuhong

    Keywords Desc.

    10.1-inch 1280 * 800 TFT LCD module   400nits EK79202, 40pins LVDS full view

    Product Class :

    Graphic Display

    Product Tags :

    Color TFT-LCD, Wide Temperature   LCD, IPS LCD

    Application :

    Portable DVD Player, Video Door Phone

    Panel Type :

    a-Si TFT-LCD

    Panel Composition :

    LCM

    Panel Size :

    10.1"

    Resolution :

    1280×800

    Aspect Ratio :

    16:10 (W:H)

    Form Factor :

    Flat Rectangle

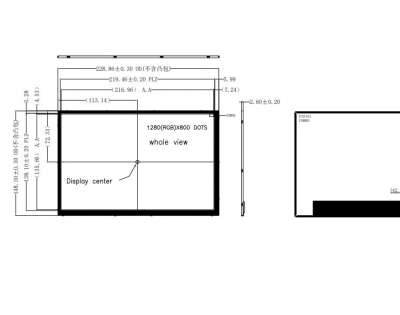

    Active Area :

    216.96 (W) × 135.6 (H) mm

    Outline Dimension :

    229.46 (W) × 149.1 (H) mm

    Max. Depth :

    2.5mm

    LC Family :

    IPS

    Polarizer :

    Transmissive

    Brightness :

    400nits

    Contrast Ratio :

    800:1 (Typ.)

    Viewing Angle :

    85/85/85/85(L/R/U/D)

    Viewing Direction

    Symmetry

    Backlight

    WLED

    Display Colors :

    16.7M

    Interface:

    LVDS

    Interface Pins :

    40Pins

    Touch Panel :

    Without

    Operating Temp. :

    -20 ~ 70 °C

    Storage Temp. :

    -30 ~ 80 °C
